50-500ml Pneumatic Tomato Salad Sauce Filling Machine

Suitable for filling with particulate matter sauce, paste, liquid and other material;
Pneumatic control, easy to operate, remove and clean;
Ideal equipment for filling chilli sauce, peanut butter and so on.
Filling Range:50-500ML
Voltage:AC110/220V,50/60Hz
Air Pressure:0.4-0.6Mps 10m³/h
Hopper Capacity:50/100L
Weight :100kg

EMAIL

50-500ml Pneumatic Tomato Salad sauce filling Machine

Description

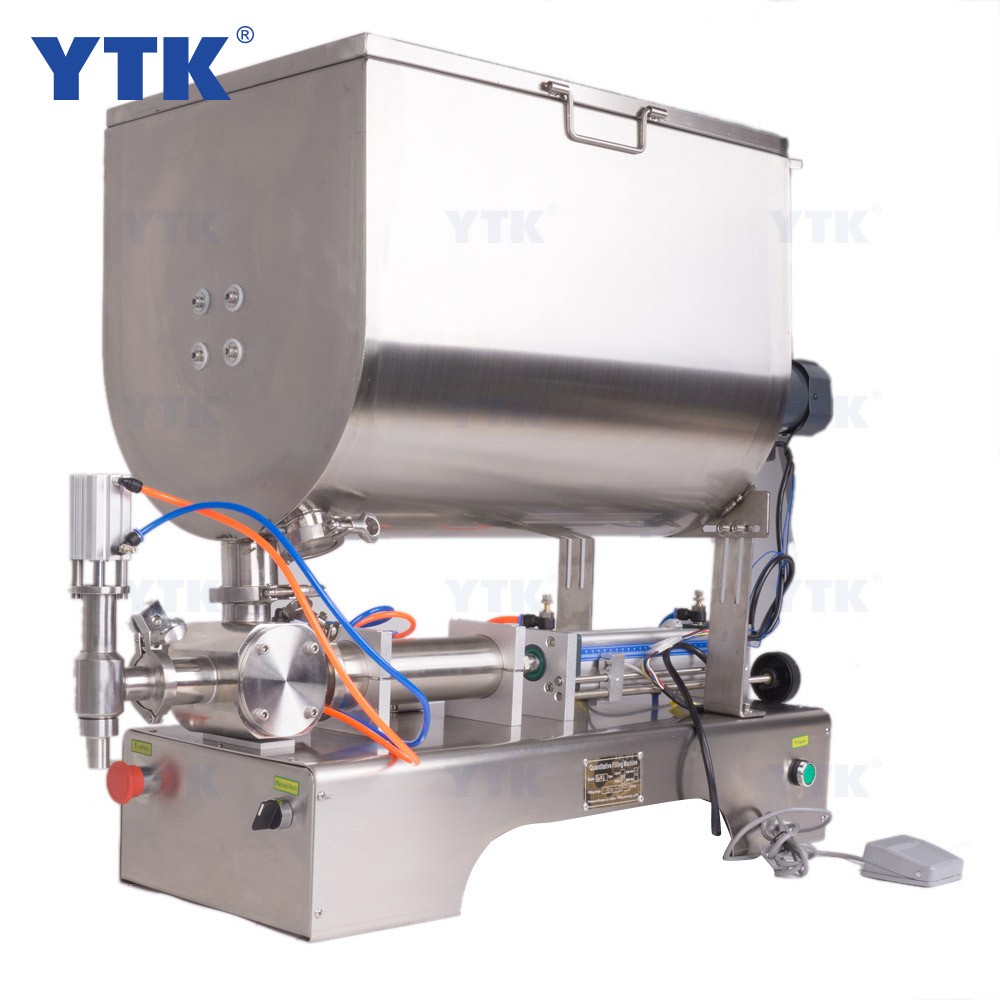

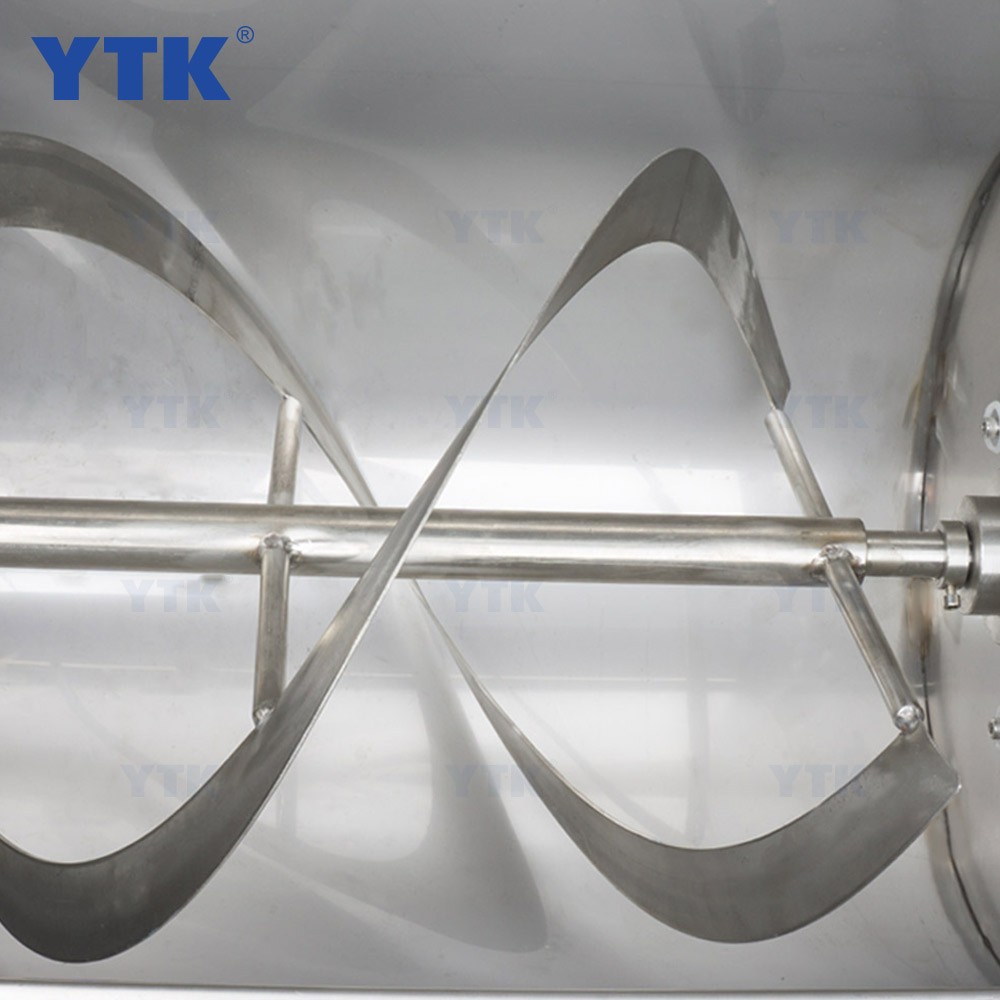

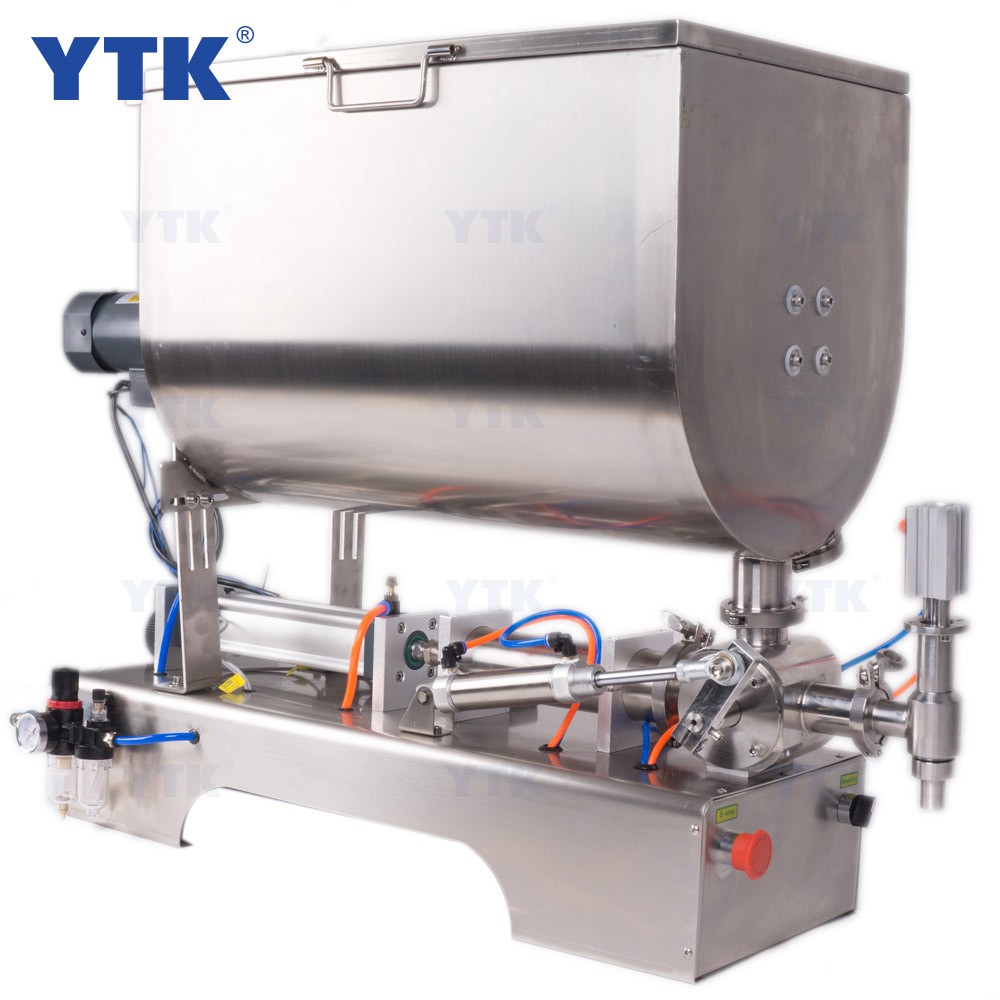

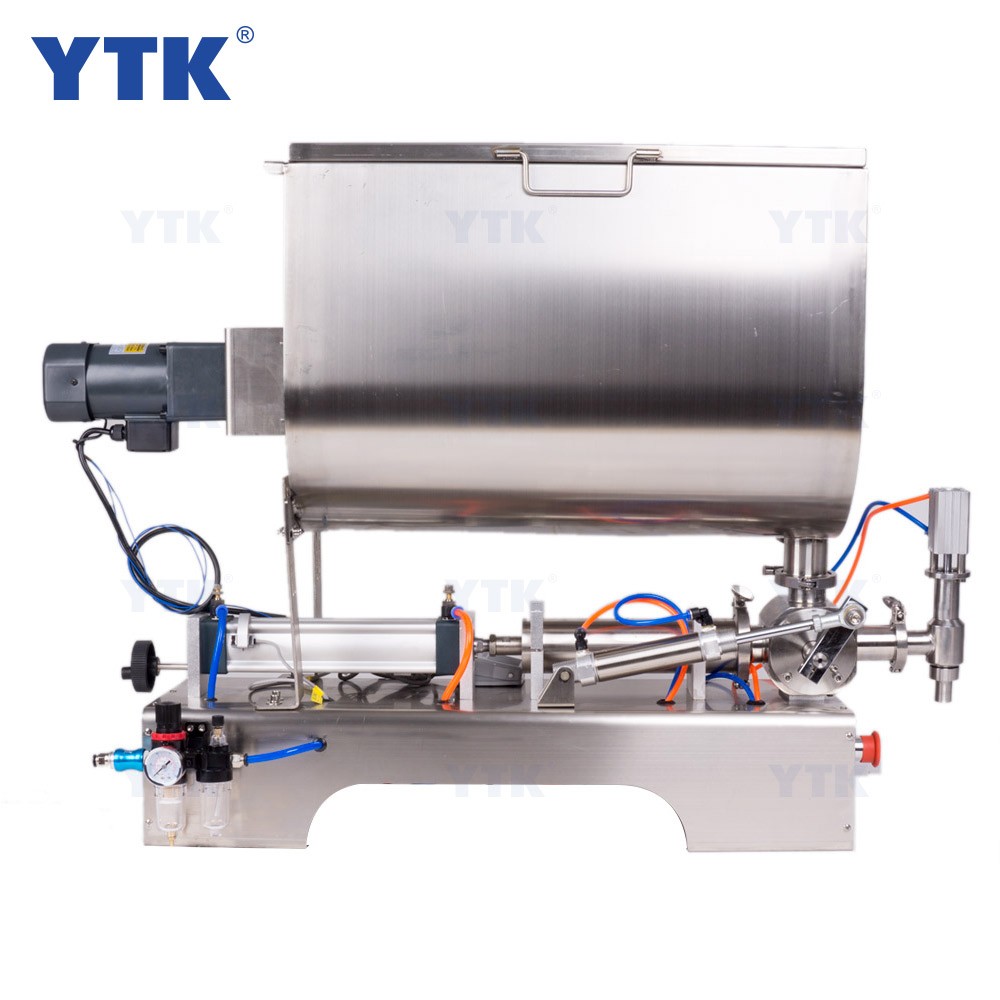

YTK pneumatic stirring filling machine is equipped with automatic mixing function. It has simple structure, high filling precision and simple operation. The filling valve is controlled by pneumatic valve. The filling volume and filling speed can be adjusted freely. The filling valve adopts anti-drawing and The lifting and filling device, the material contact parts are made of 304 stainless steel material, in line with GMP standards.

ModelYTK-PF500U
Voltage220V 120W
Filling range100-500g
Filling speed8-25pcs/min
Filling accuracy≤1%
Air pressure0.4-0.6Mps 10m³/h
Gross weight100KG
