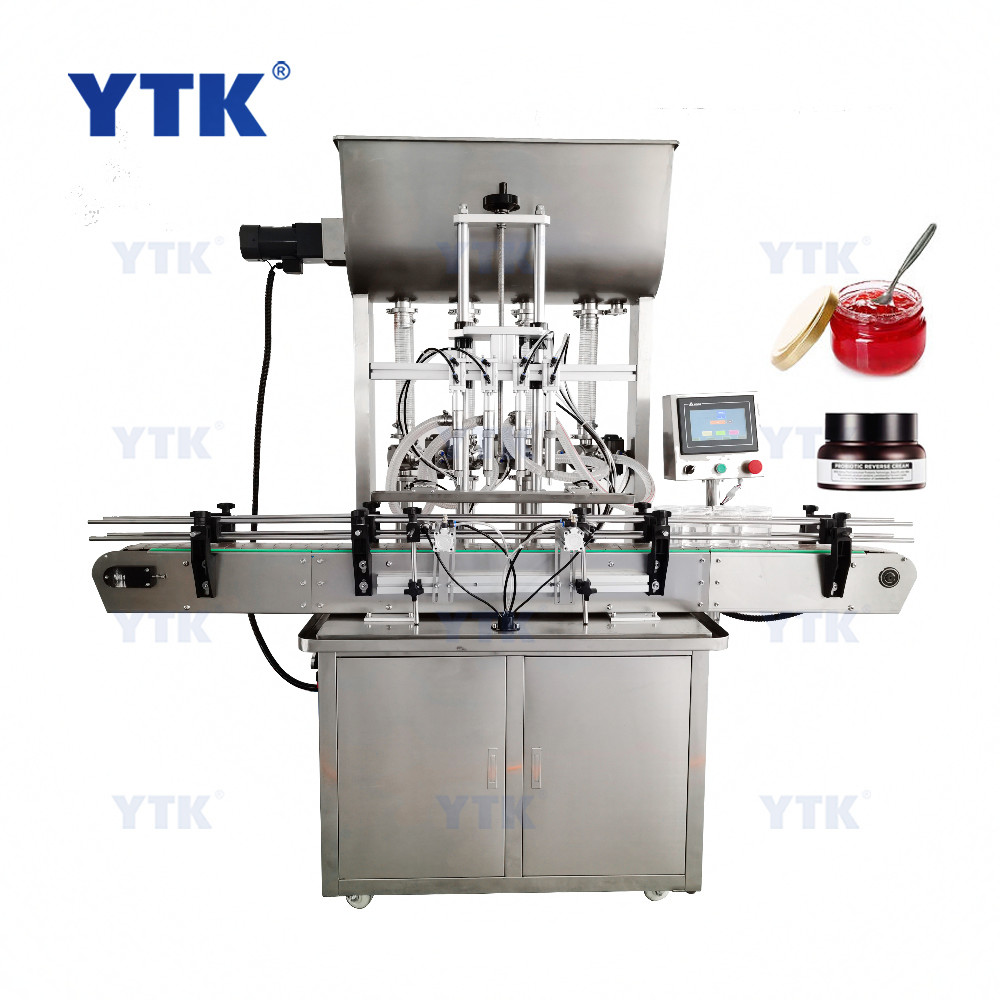

Fully Automatic 4 Nozzles Chilli Tomato Paste Filling Machine Linear

Model:YTK-QZDG4M
Voltage:220V/110V 50-60HZ
Filling Material:Liquid or Paste
Filling Rate:Depends filling material(contact us for precise data)
Working speed:About 20- 50bottles/Min

EMAIL

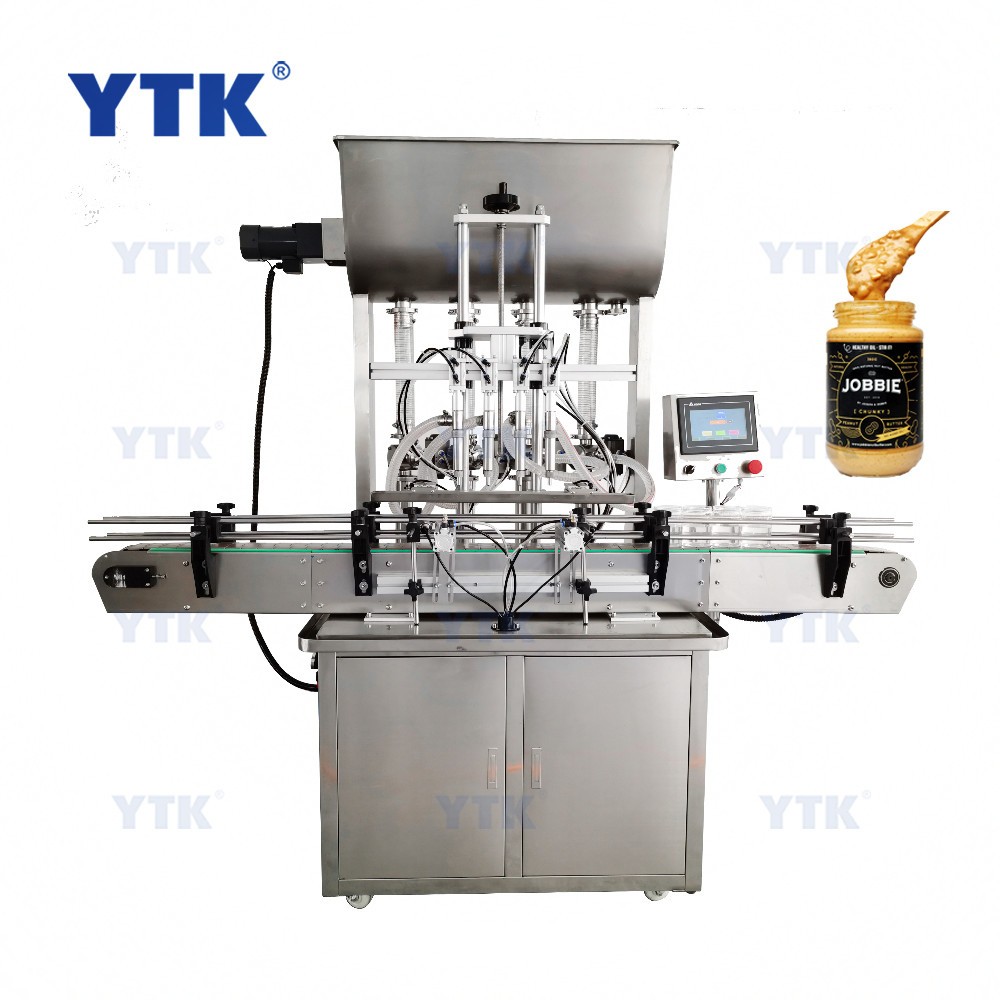

Fully Automatic 4 Nozzles Chilli Tomato Paste Filling Machine Linear

Product Description

This 4 nozzles paste filling machine is designed for filling paste like curry paste, tomato sauce, pepper sauce, each nozzle can be controlled separately, the filling range and speed are adjustable according to operation. This machine can work with capping machine and labeling machine to realize automated production.


Application

It is widely used in the filling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple sauce, salad dressing, etc.


Product Parameter

Model:YTK-QZDG4M

Voltage:220/110V 50/60HZ

Power:600W

Filling range:5-100m/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working speed(based on water):20-50bottles/min

Heating temperature:About 0-300℃

Mixing speed:About 1200r/min

Filling accuracy :≤±1%

Air pressure:0.5-0.7mpa

Conveyor size:About 2000*100mm(l*w)

Size of filling nozzle:φ10mm

Size of air compressor connector:φ10mm

Machine weight:About 329kg

Machine size:About 975*1020*2010mm

Package weight:About 392kg

Package size:About 1660*1130*2130mm


Display Details

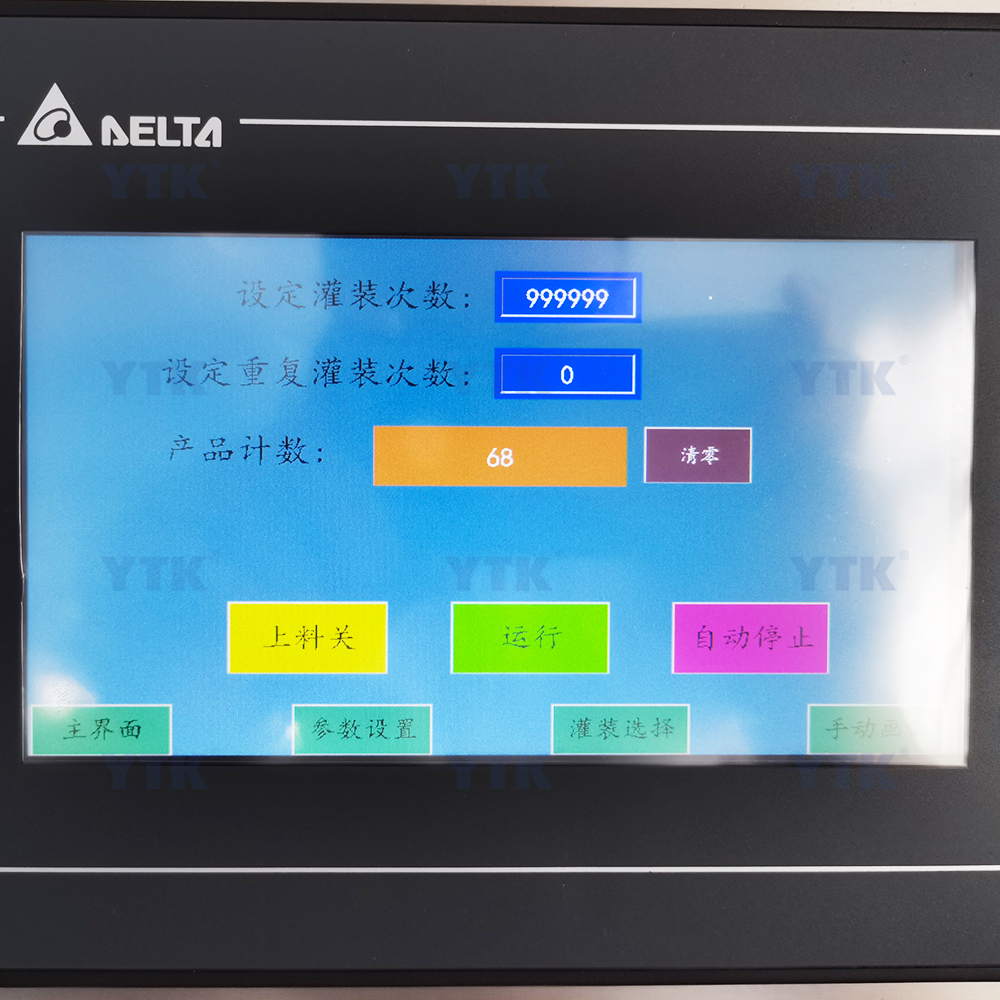

1、Equipped with a touch panel, the operation is simple and convenient for operators to operate.

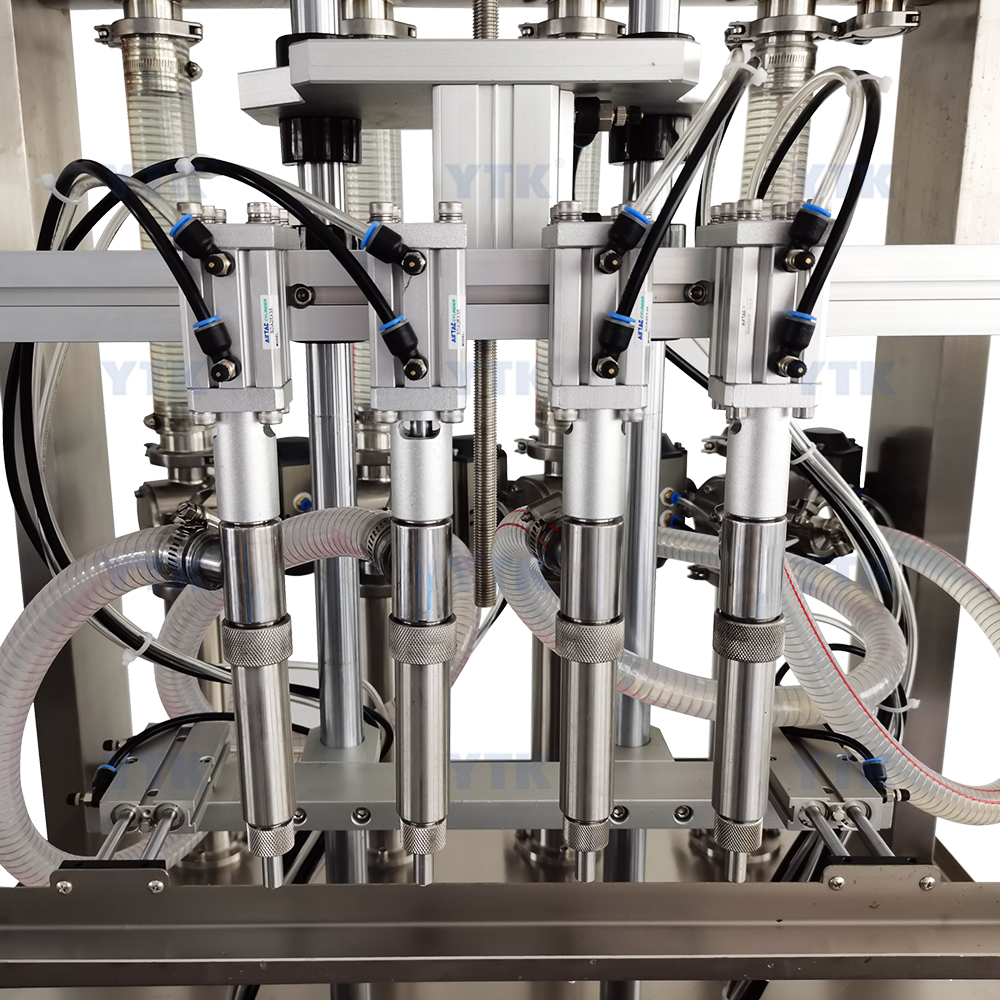

2、Filling nozzles with anti-dripping design, we can customize multiple filling nozzles as production needs.

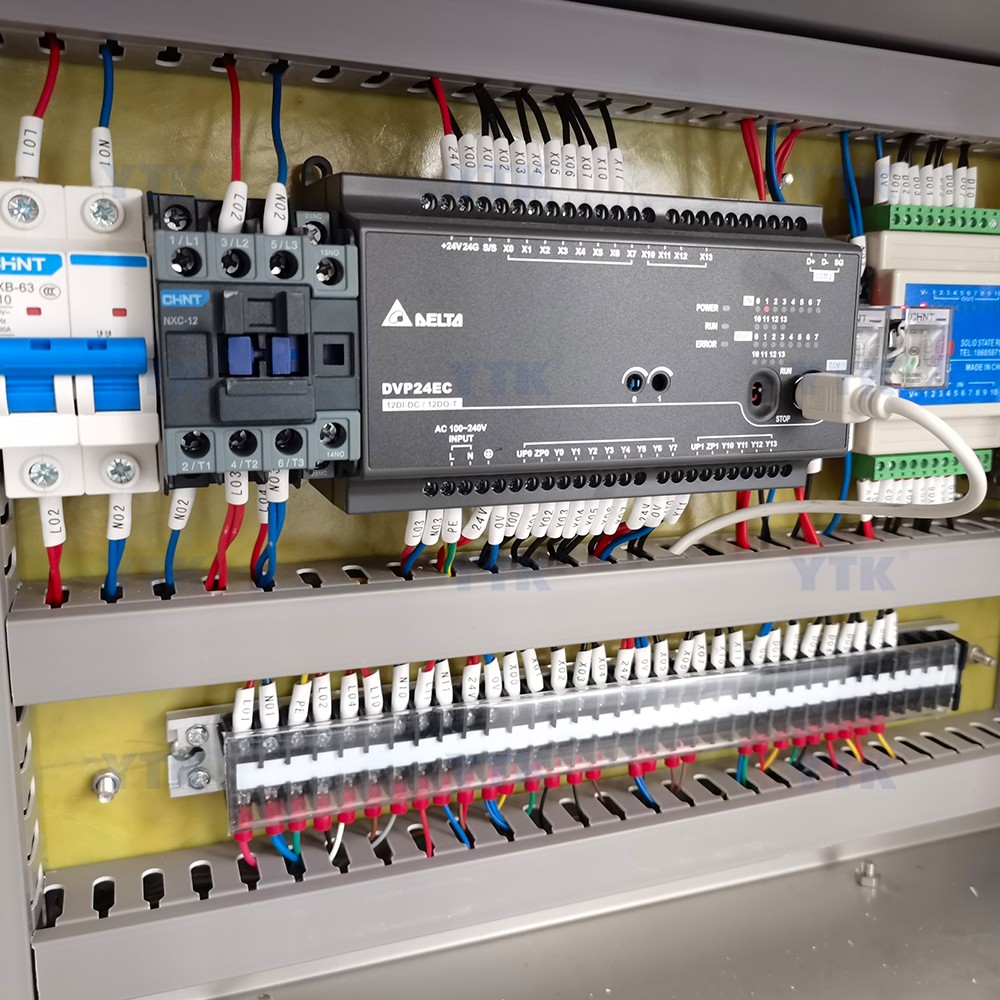

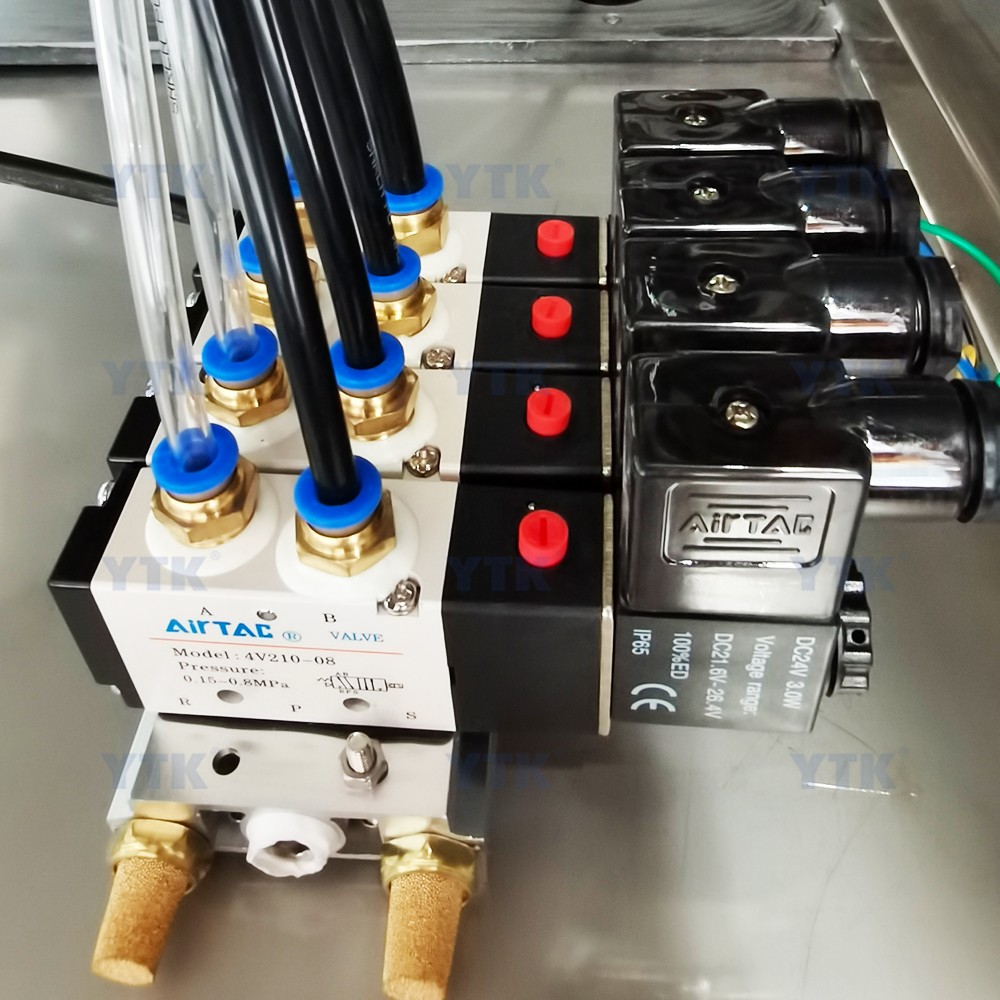

3、Use brand accessories, safe and durable.
