Packing speed:30-60 bags/min
Bag size: (L) 20-150 (W) 20-100 (mm)

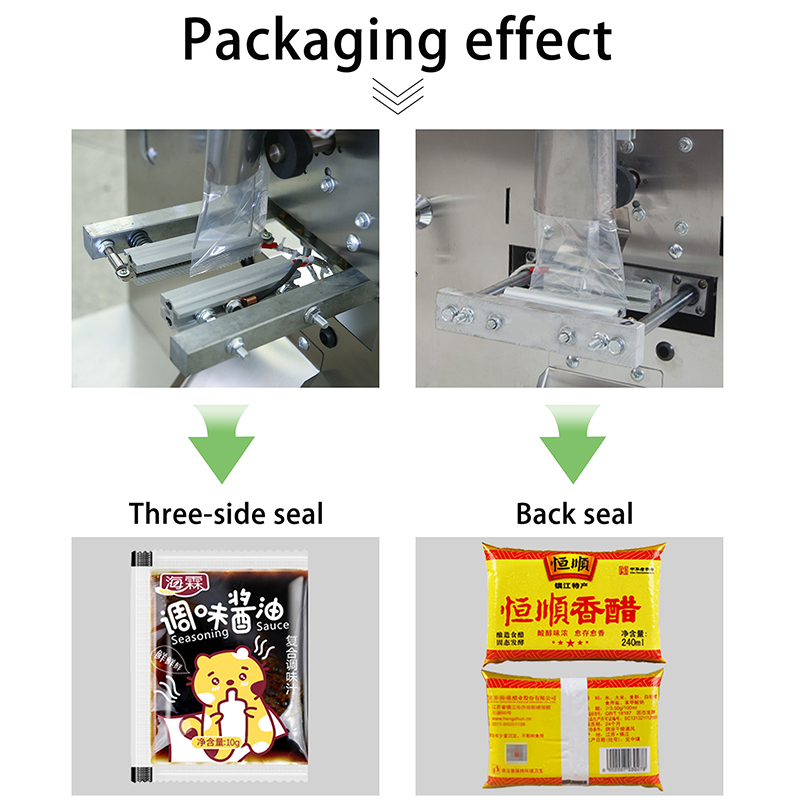

Sealing form: three-side seal, four-side seal, back seal (choose one of three)
This automatic liquid packaging machine: suitable for automatic packaging of liquid, paste and sauce materials in food, pharmaceutical, cosmetic, chemical and other products, such as: shampoo, shower gel, face cream, foliar fertilizer, seasoning oil, pepper Oil, chili sauce, ketchup, salad dressing, etc.

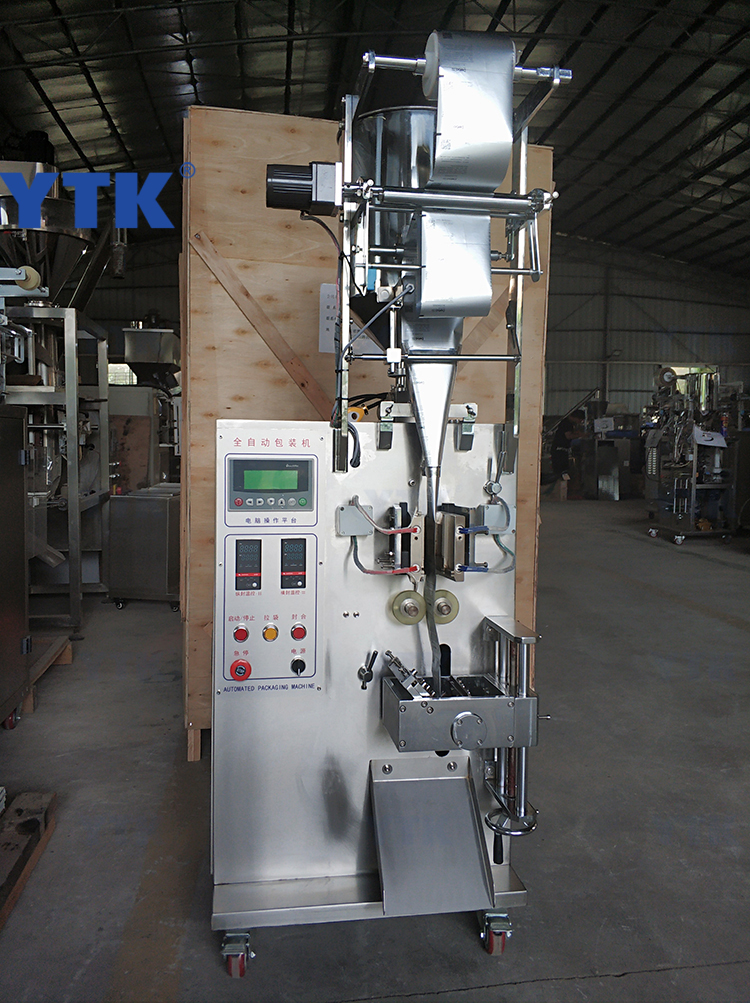

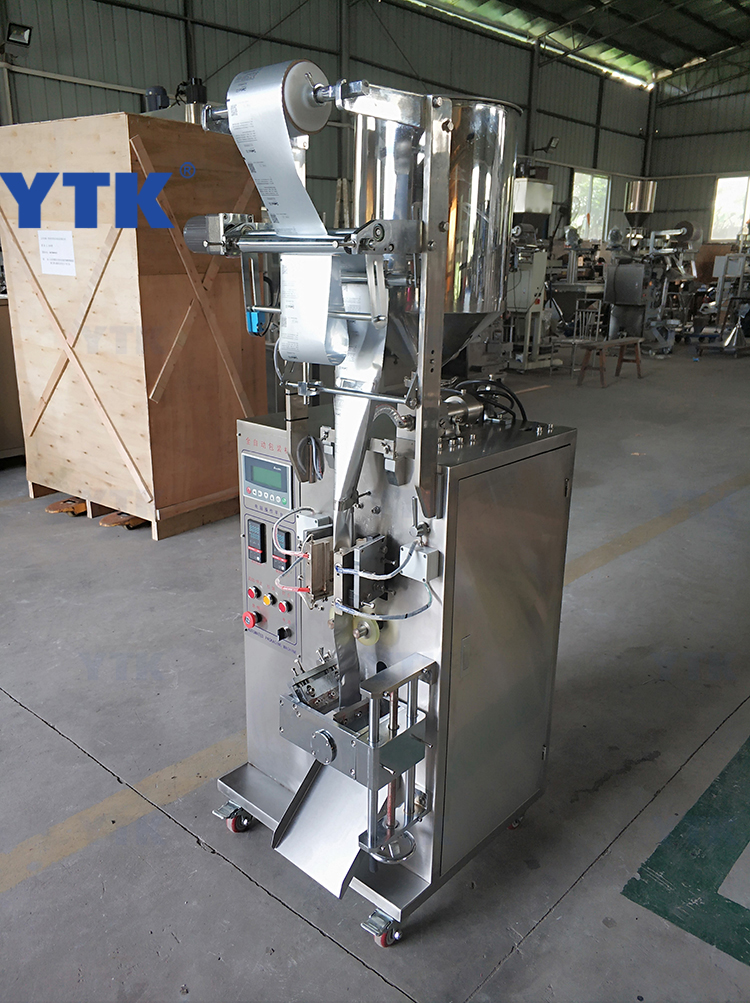

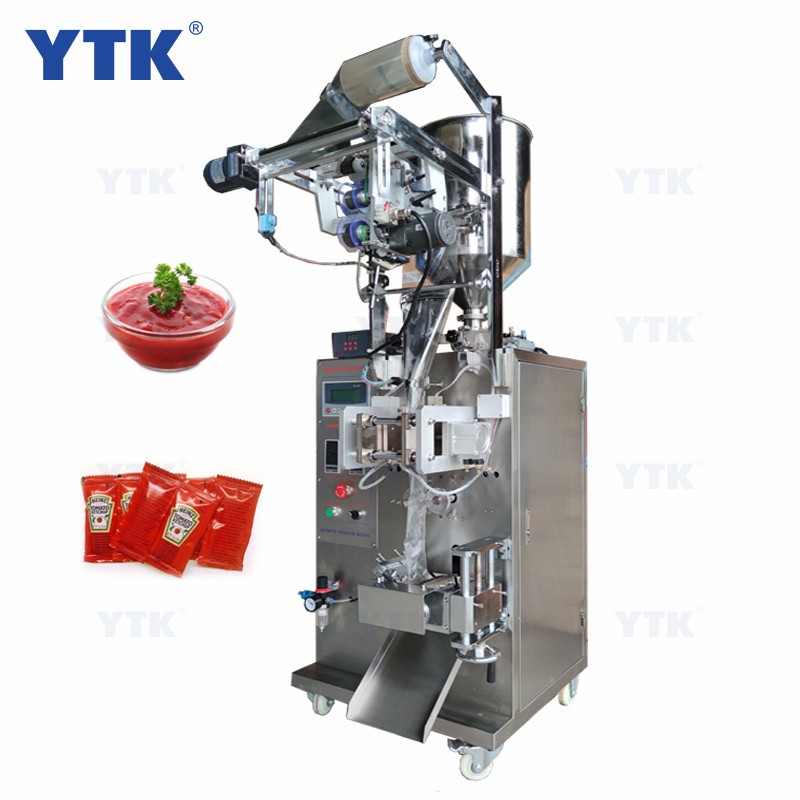

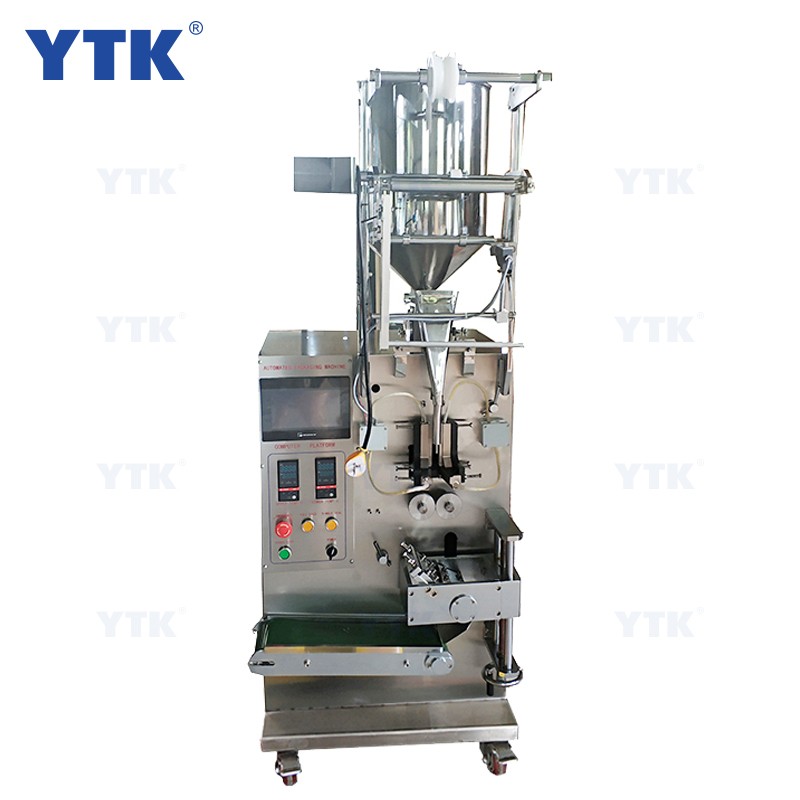

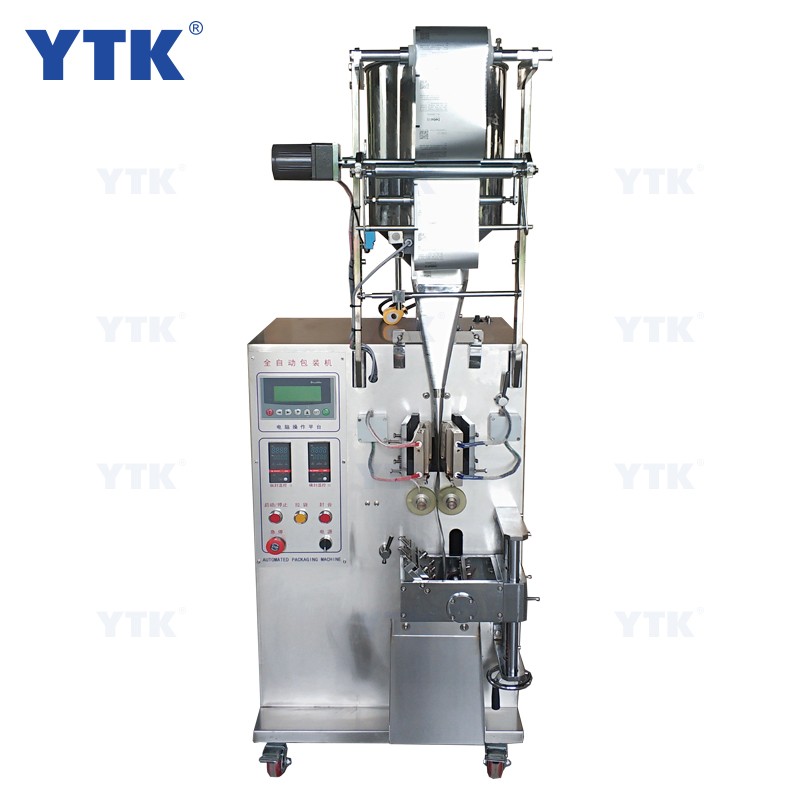

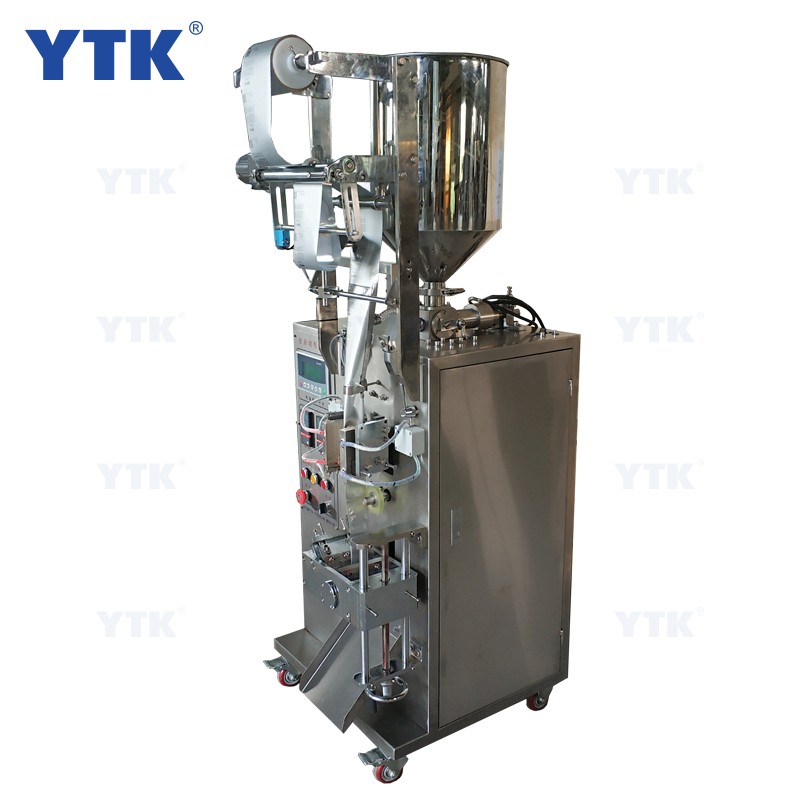

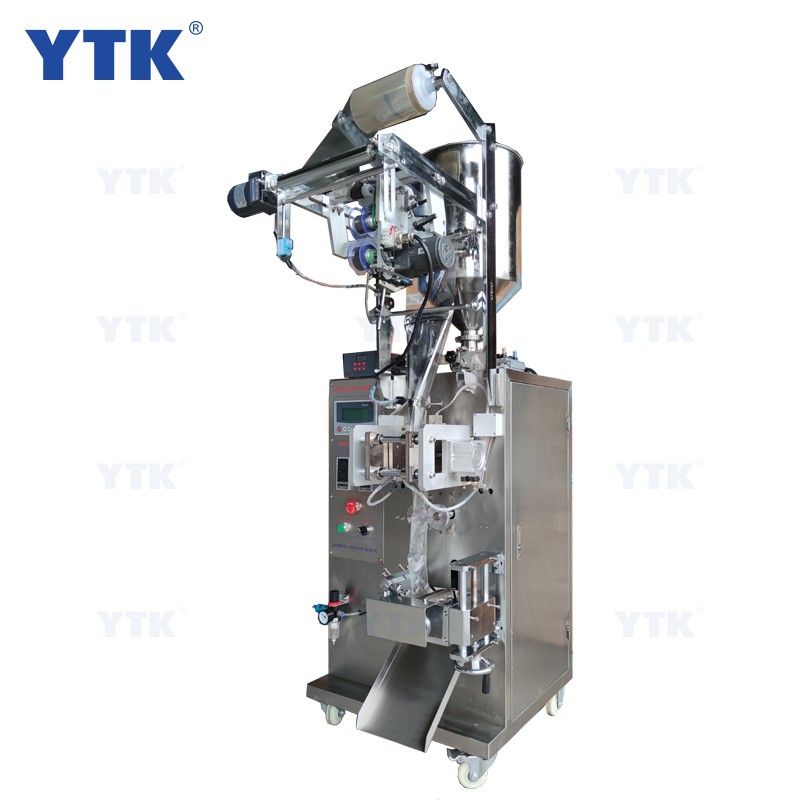

Multi-function Automatic Paste Liquid packing machine
1. The liquid automatic packaging machine can automatically complete all the tasks of measuring, bag making, filling, sealing, printing the production date of the ribbon, cutting, counting, printing the production date, and cutting the easy tearing opening during the packaging process.
2. The control system adopts Japan's Mitsubishi PLC + Chinese display screen, with stable performance and strong anti-interference ability, which makes the operation simpler and the maintenance more convenient.
3. The bag-pulling system is controlled by stepper motor. The system has the characteristics of high accuracy, low noise and long service life. There is no need to adjust other components. The length of the bag can be changed only by changing the parameters on the display screen, and it is accurate.
4. The machine also has a color-coded identification system, which can obtain a complete trademark pattern when packaging color-coded packaging materials.
5. Stepless adjustment of speed and bag length: The packaging speed and bag length can be adjusted steplessly within the rated range, without the need to replace parts;
6. The parts in contact with the materials are all made of 304 stainless steel, which is clean and hygienic and fully meets the national food hygiene standards.
7. Reliable sealing, reinforced heat-sealing mechanism, intelligent temperature controller temperature control, good thermal balance, suitable for various packaging materials, good performance, low noise, and clear sealing texture.
