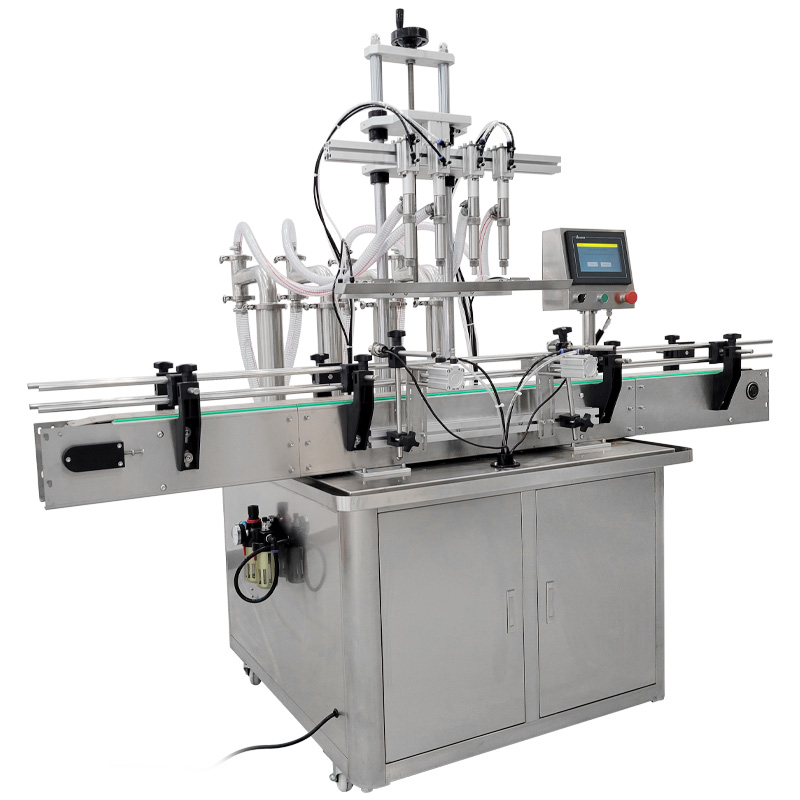

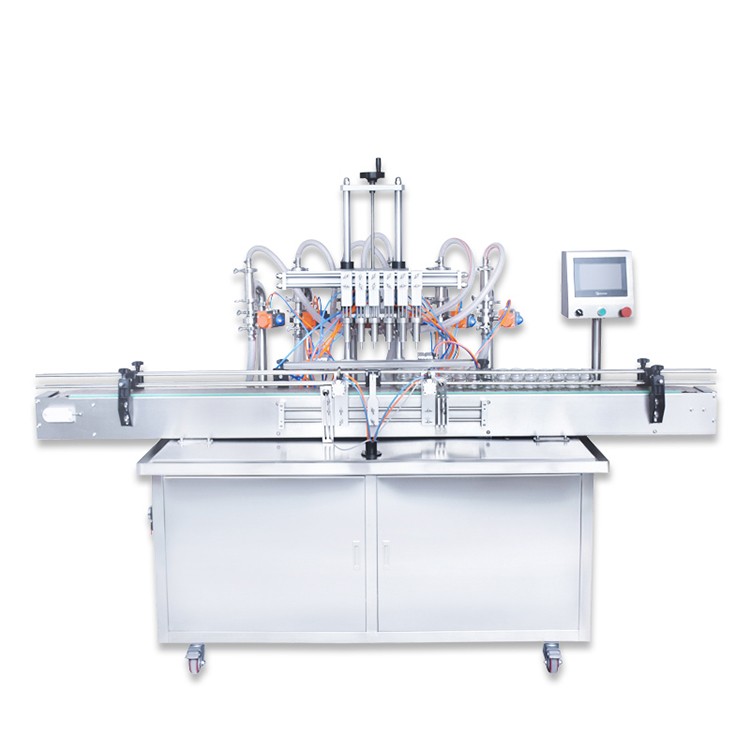

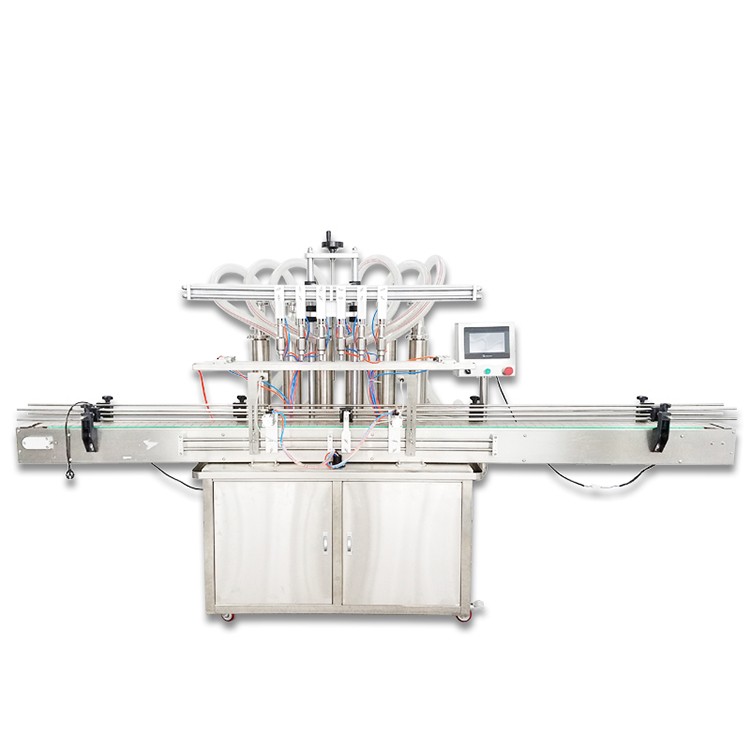

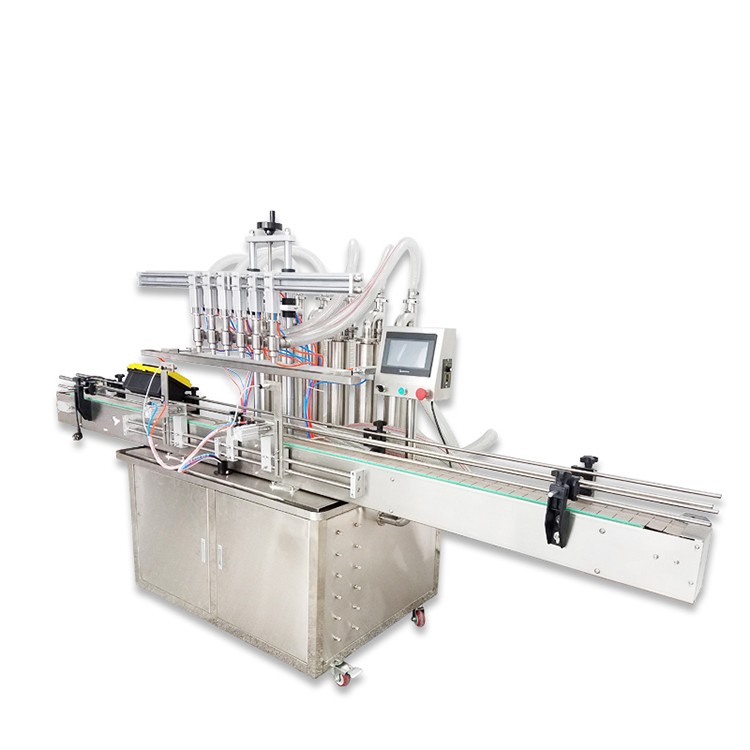

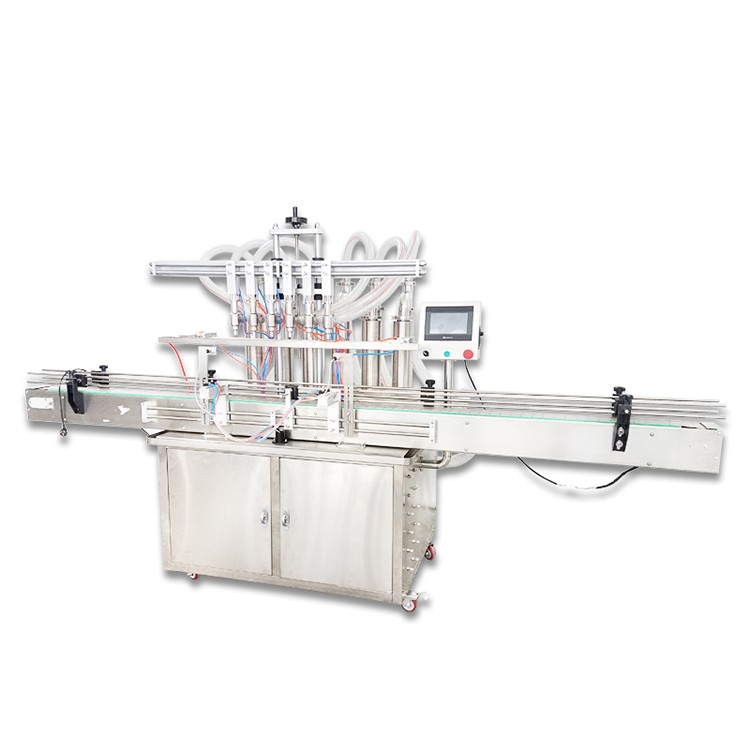

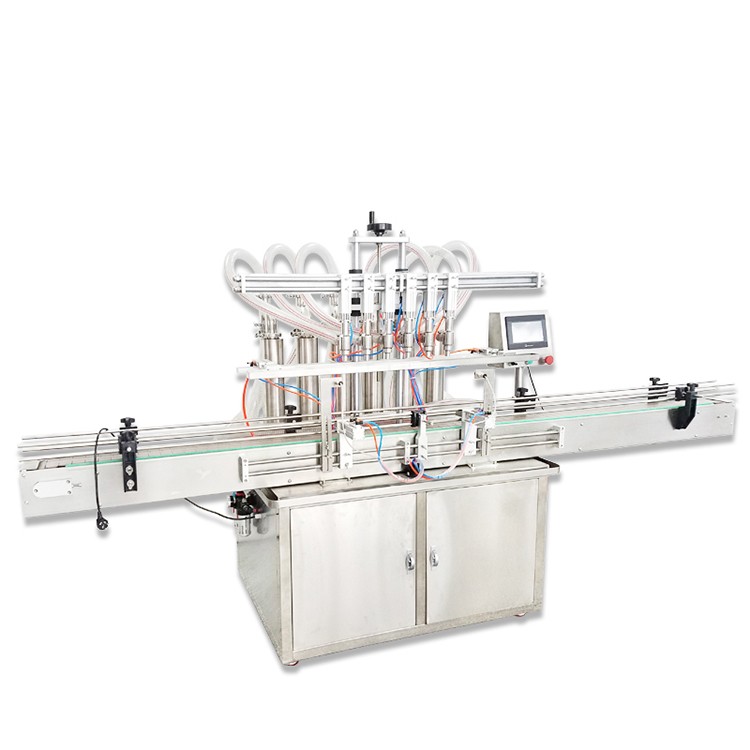

ALF2/4/6/8 assembly line automatic liquid filling machine

Model: ALF2/4/6/8
No. of filling nozzle: 2/4/6/8 or custom
Filling range: 5-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
Filling speed: 5-10bottles/nozzle·min
Accuracy: 1±1%

EMAIL

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid detergent filling machine, working under the state without electricity, it is safer to operate. This machine has two or four filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device. It save workers and can increase the production capacity rapidly. it,s ideal equipment for production line


Machine model

YTK-100L-4

YTK-300L-4

YTK-500L-4

YTK-1000L-4

YTK-2500L-4

YTK-5000L-4

Filling range

(5-100ml)×4

(10-300ml)×4

(50-500ml)×4

(100-1000ml)×4

(500-3000ml)×4

(1000-5000ml)×4

Air pressure

4-6kg/cm2

4-6kg/cm2

4-6kg/cm2

5-8kg/cm2

5-8kg/cm2

5-8kg/cm2








Filling speed

30-50bottles/min

30-50bottles/min

30-50bottles/min

30-50bottles/min

30-50bottles/min

20-40bottles/min

Filling precision

Liquid ≤±1%, paste≤±2%

Liquid ≤±1%, paste≤±2%

Liquid ≤±1%, paste≤±2%

Liquid ≤±1%, paste≤±2%

Liquid ≤±1%, paste≤±2%

Liquid ≤±1%, paste≤±2%
