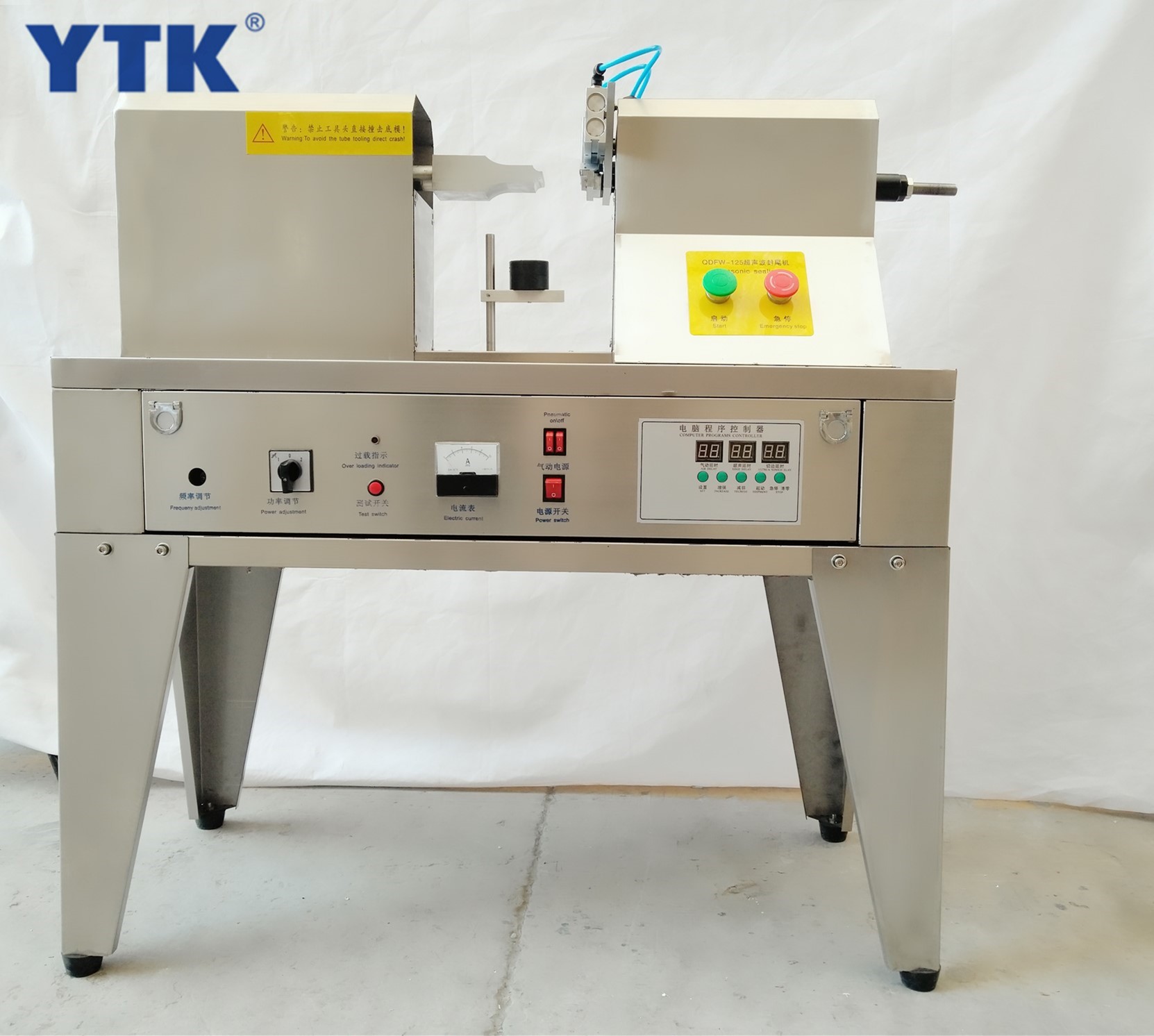

Model：YTK-125
Environmental temperature：0°C +35°C
Working Height：0-300mm(Can be Customized)
Air pressure：0.2----0.6 MPa
Tube height：50~180mm ( Can be Customized )
Tube diameter：F5~F50 mm ( Can be Customized )
Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc.

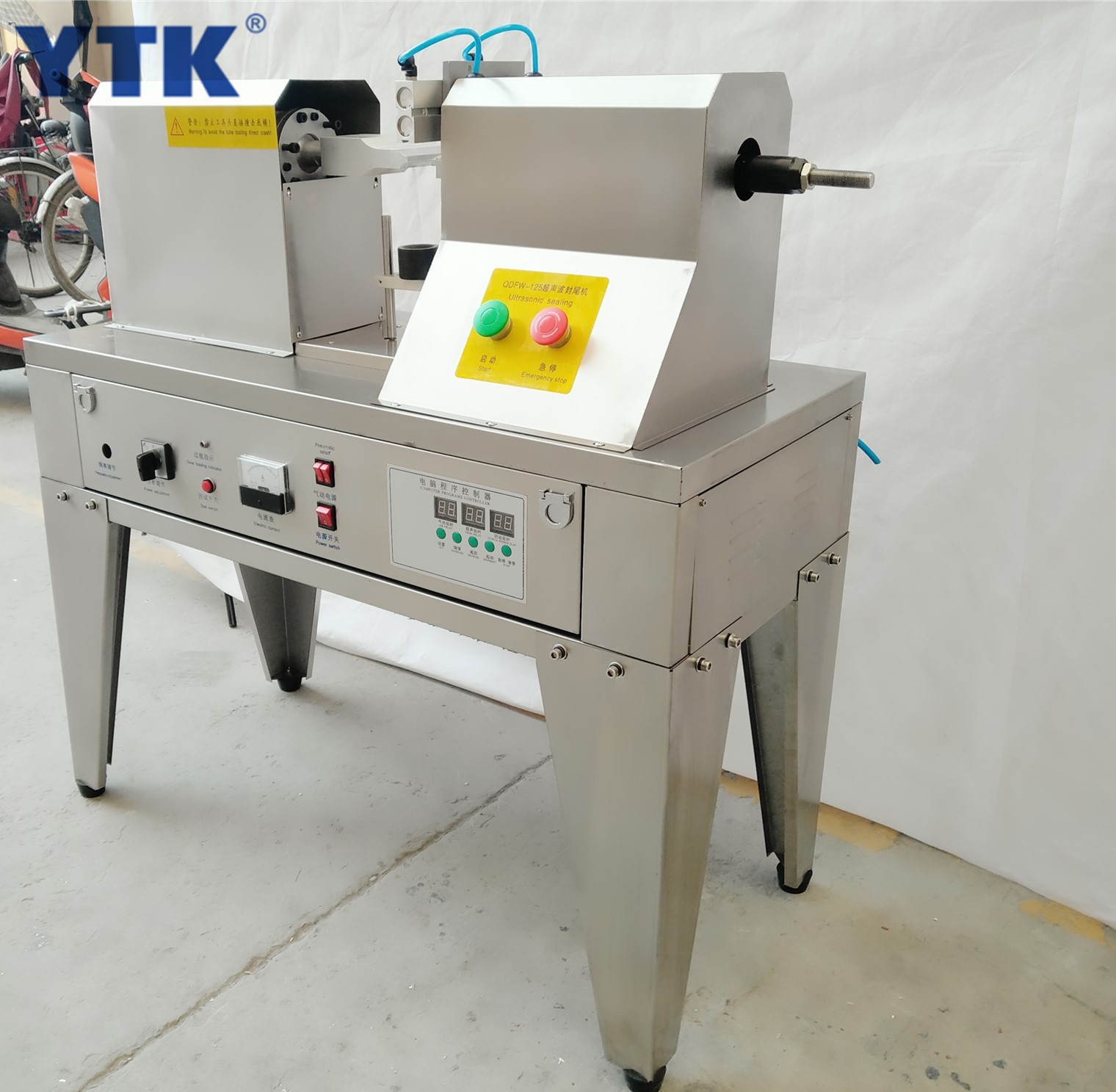

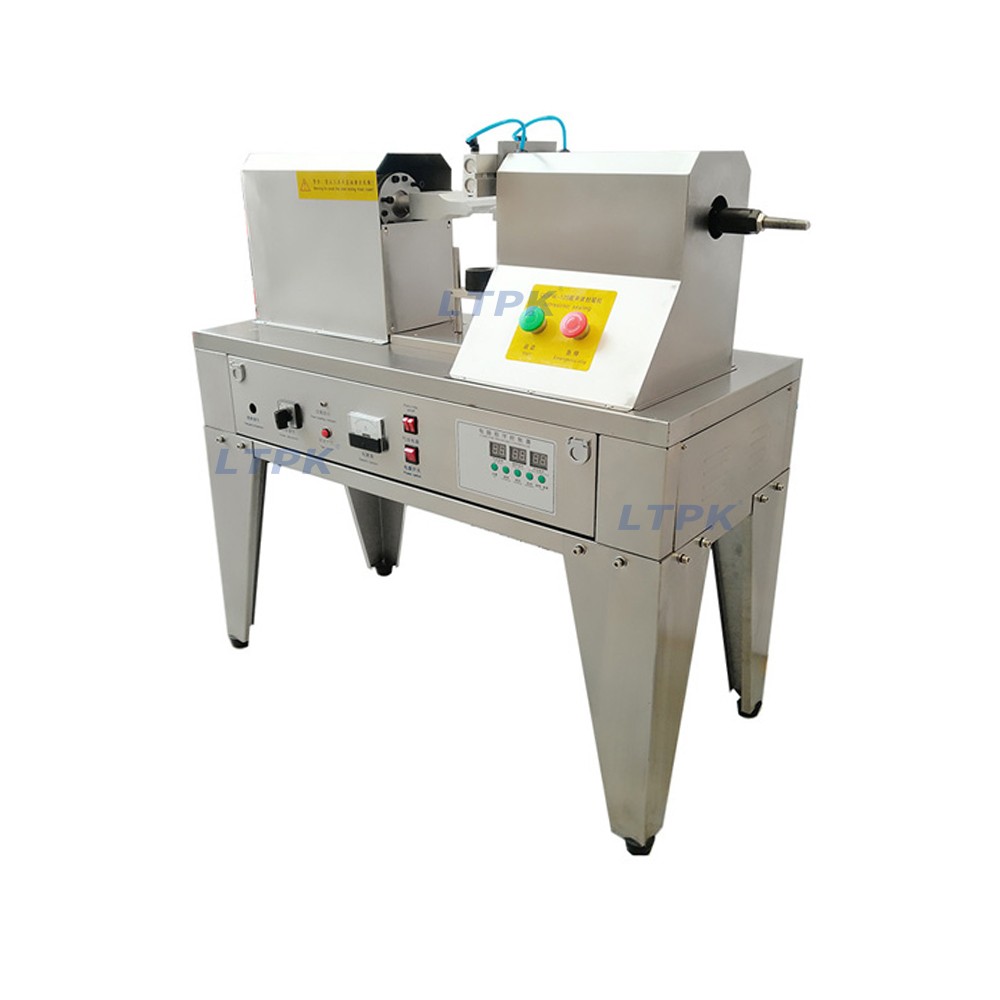

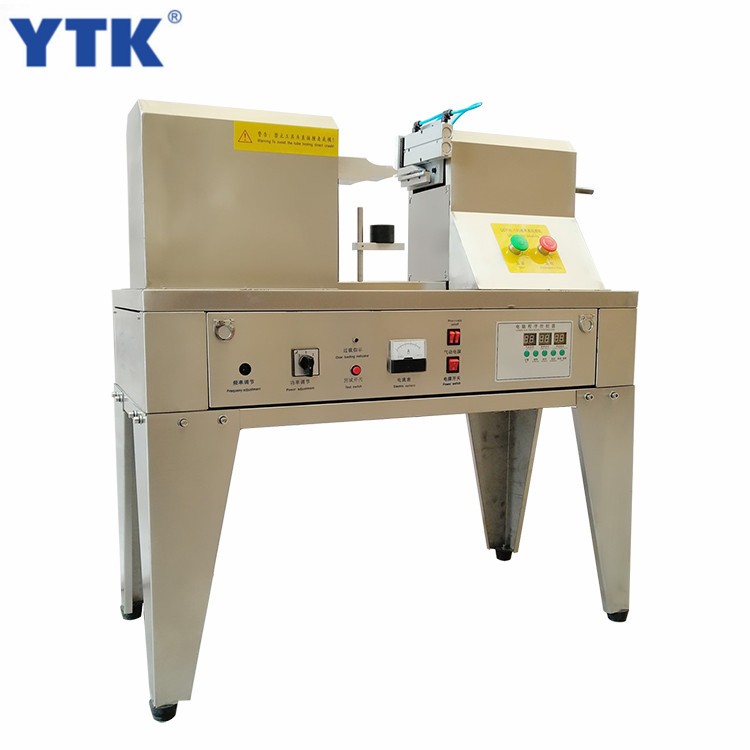

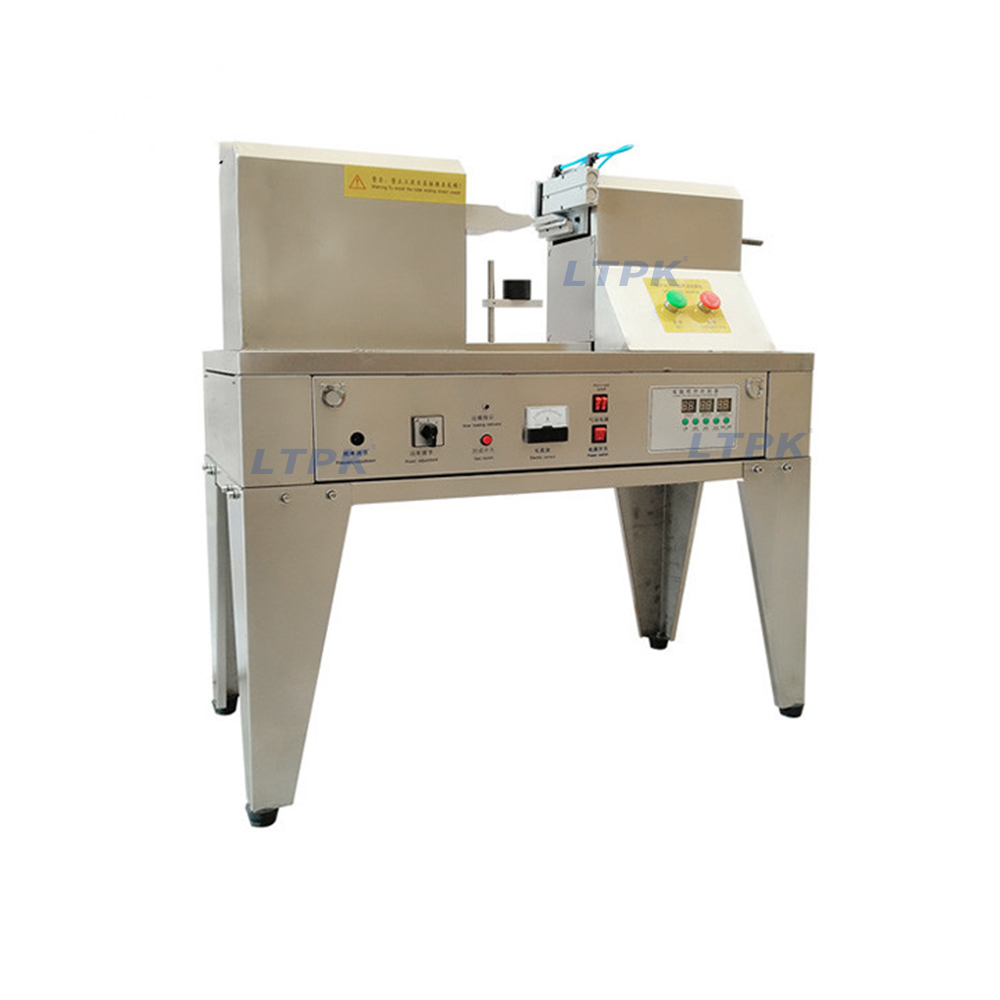

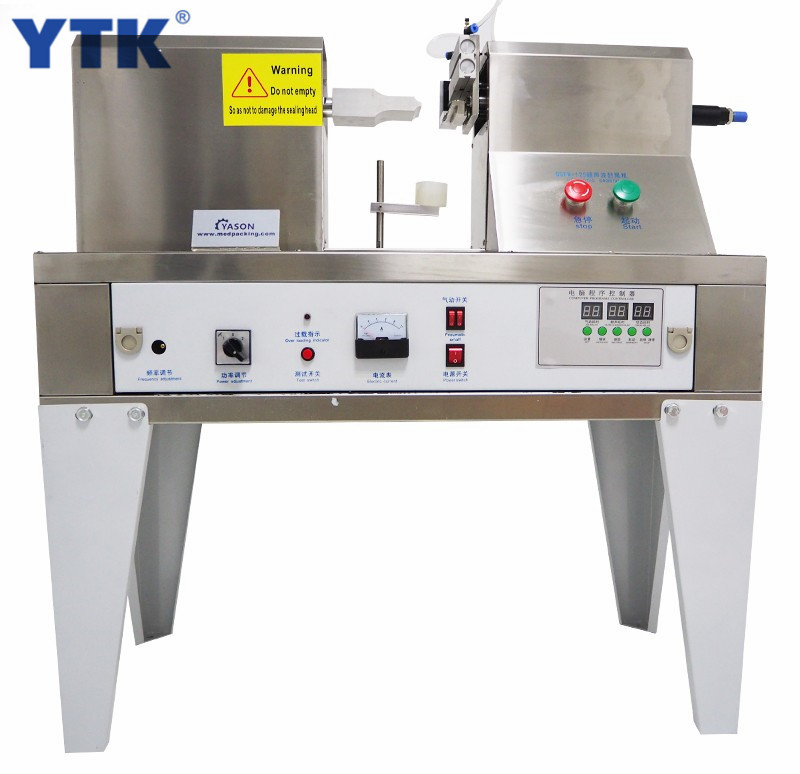

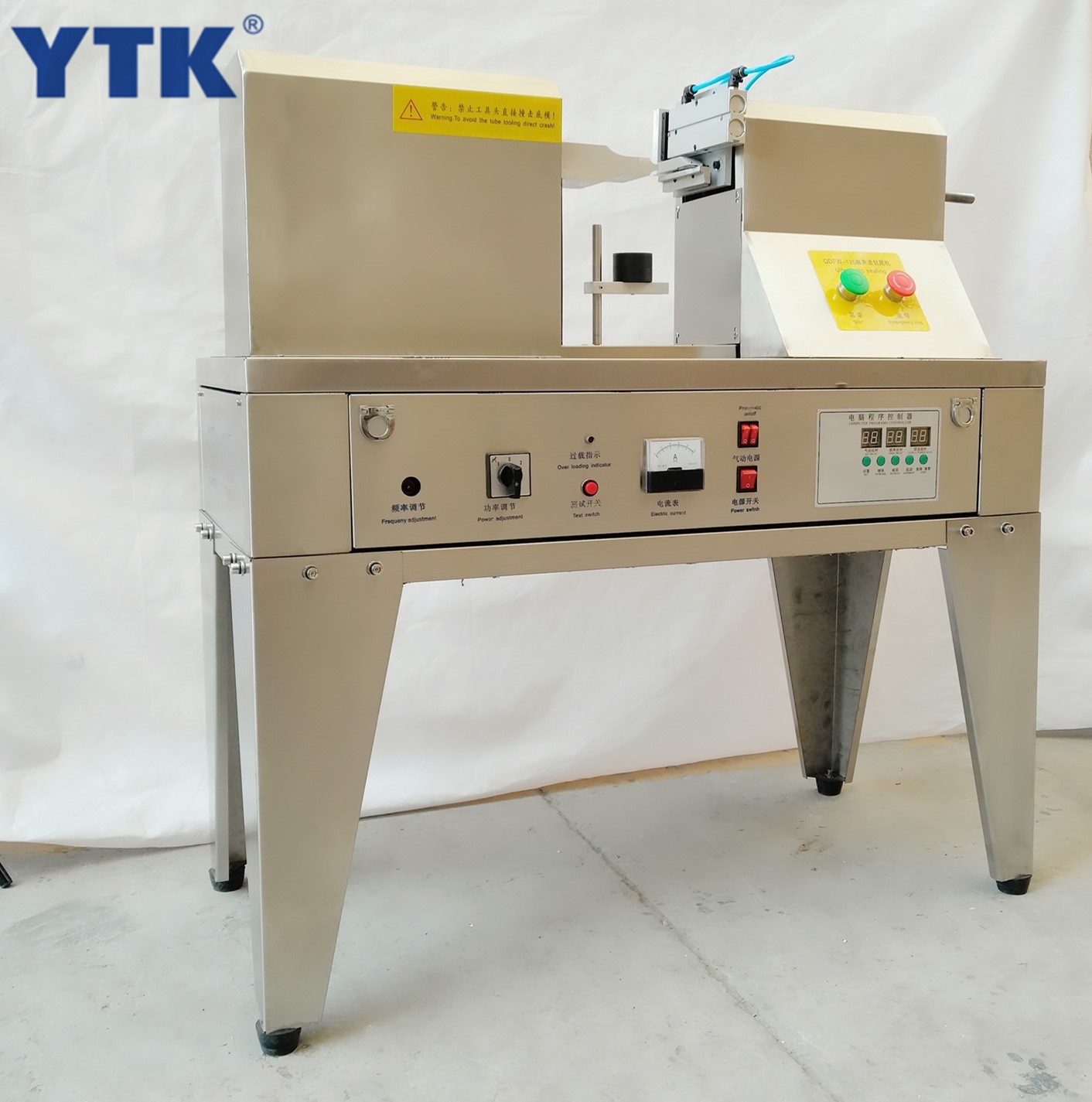

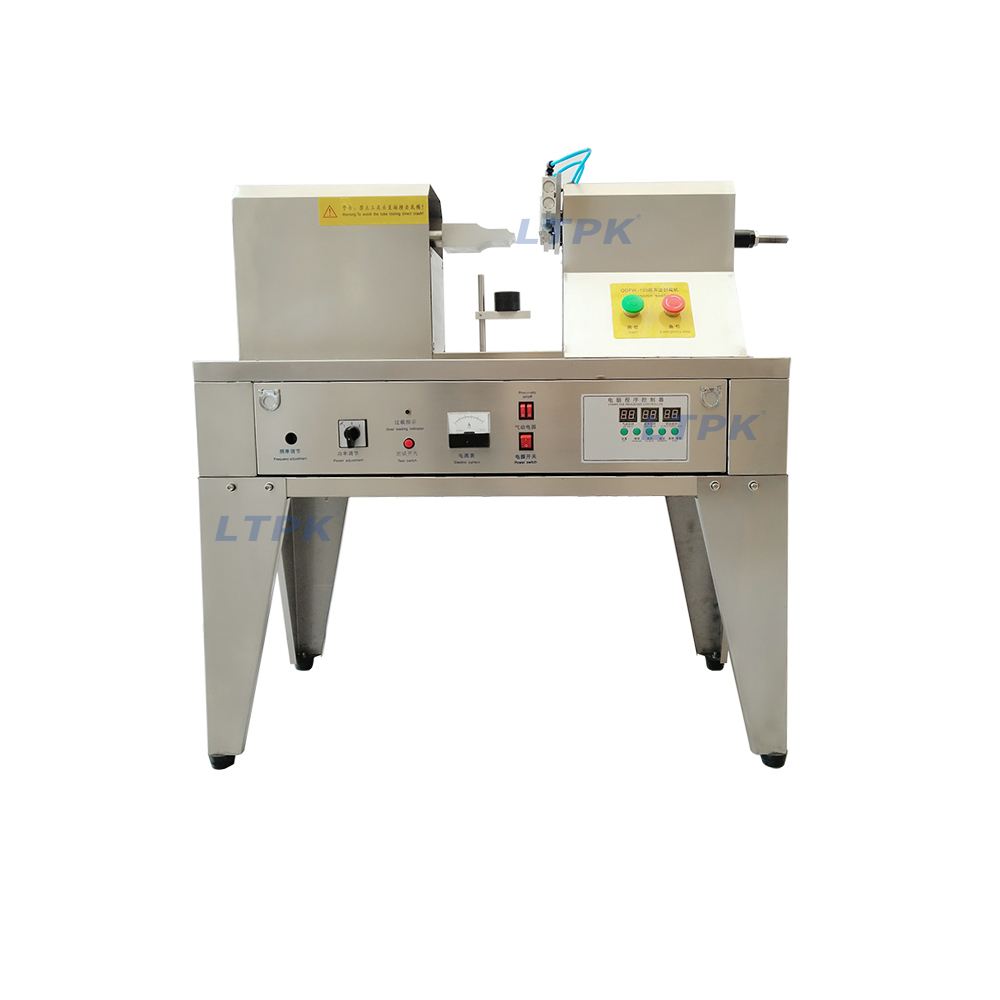

The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes. It has good working stability and high efficiency. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance.

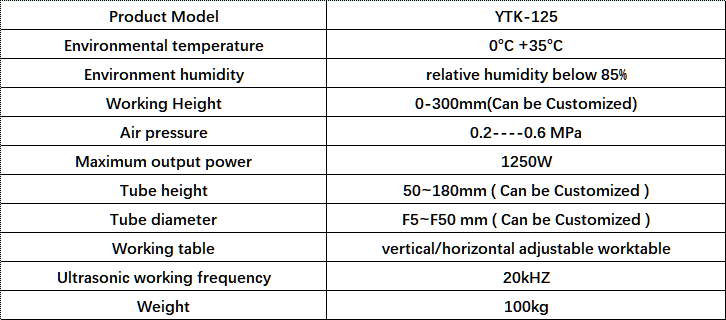

Technical Parameters
Model | |
Environmental temperature | 0°C +35°C |
Environment humidity | relative humidity below 85% |
Working Height | 0-300mm(Can be Customized) |
Air pressure | 0.2-0.6MPa |
Maximum output power | 1250W |
Tube height | 50~180mm ( Can be Customized ) |
Tube diameter | F5~F50 mm ( Can be Customized ) |
Sealing speed | About 20 pieces/min |

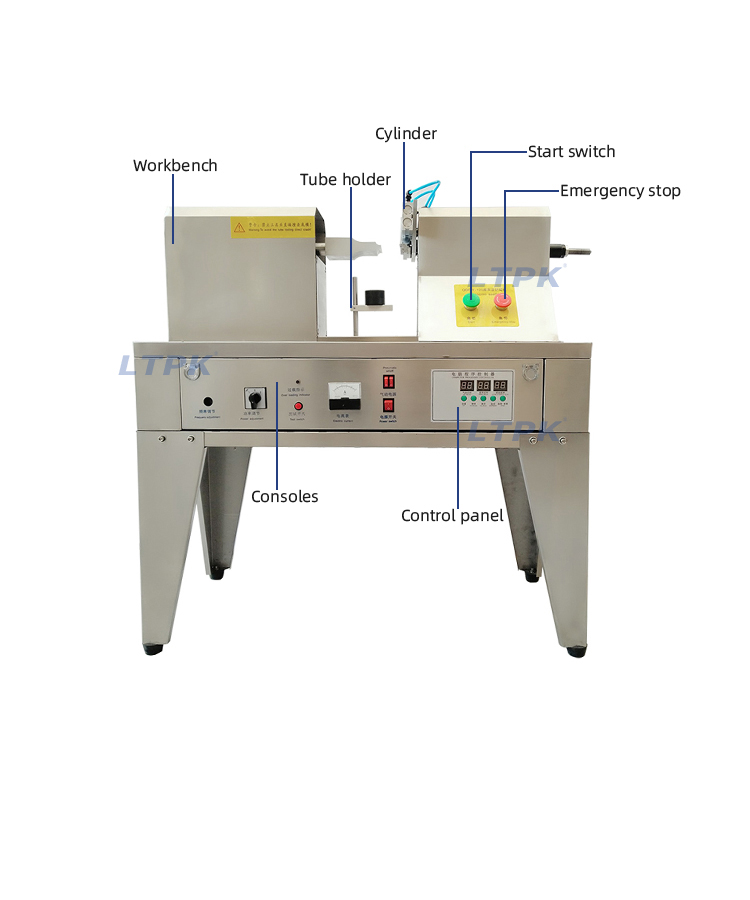

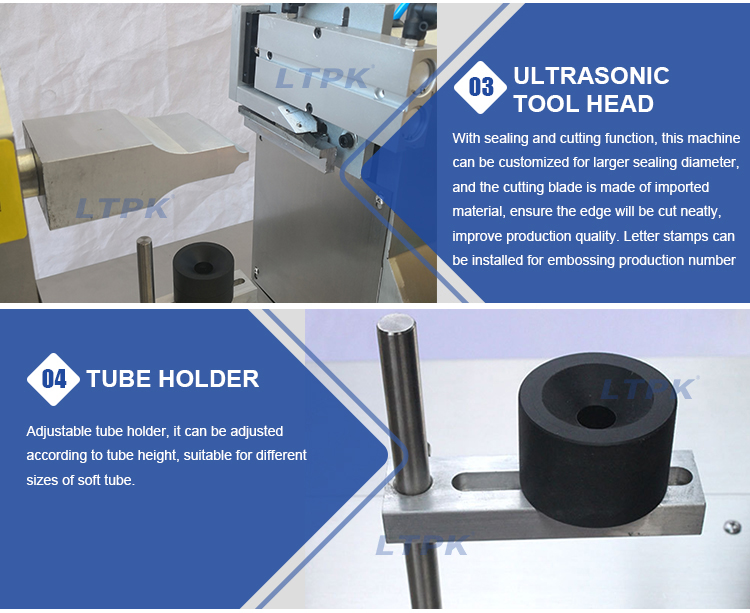

Working table | vertical/horizontal adjustable worktable |
Ultrasonic working frequency | 20kHZ |
Size | 110*65*53cm |
Weight | 100kg |
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
