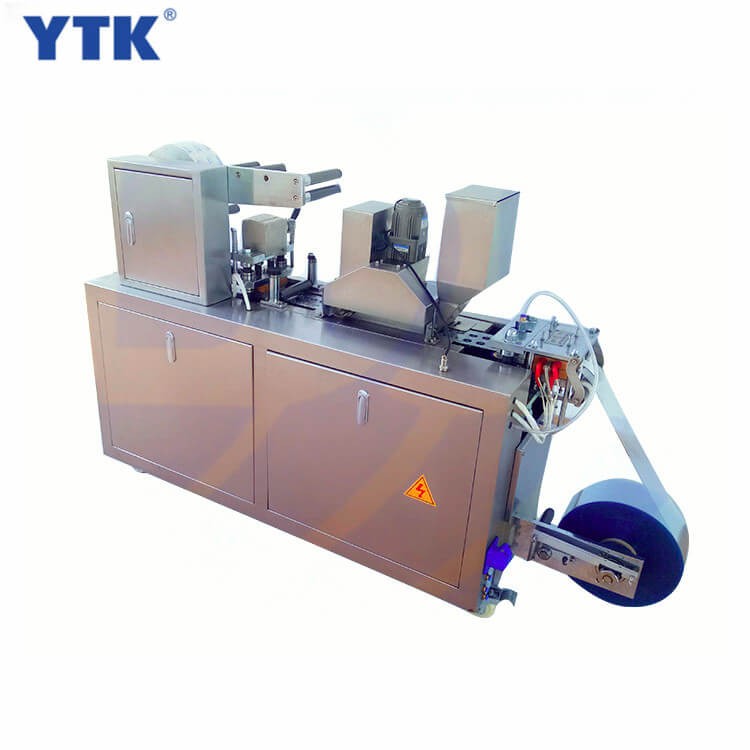

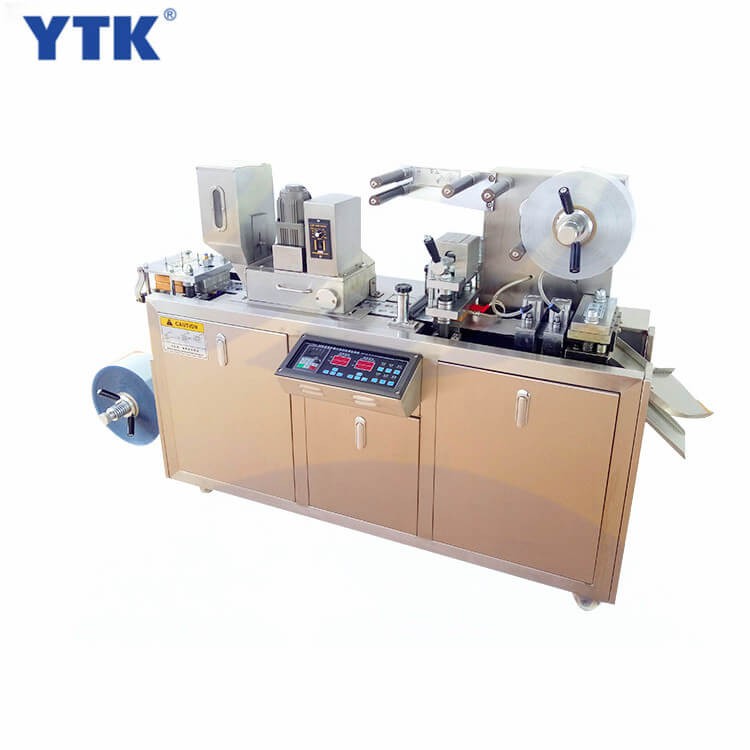

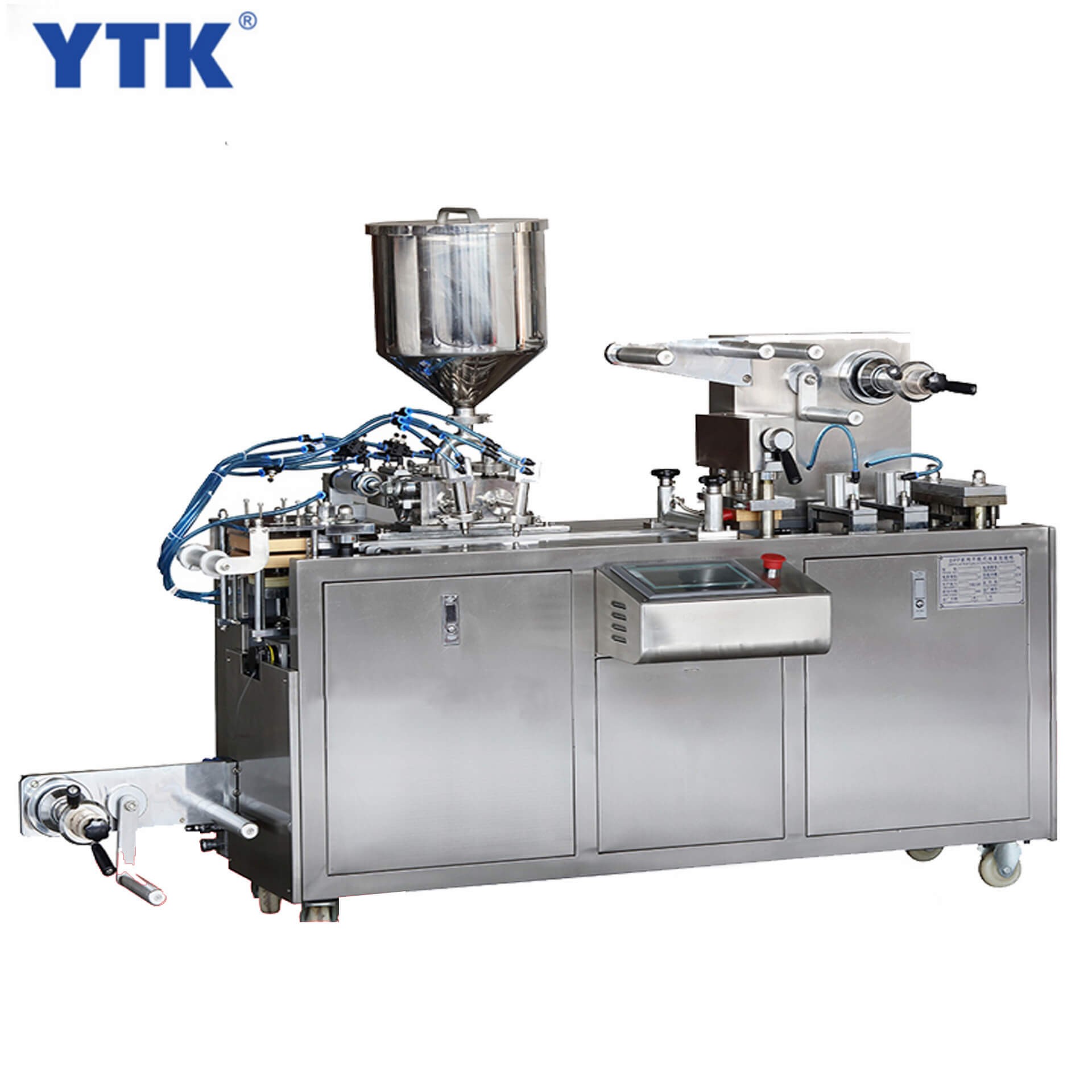

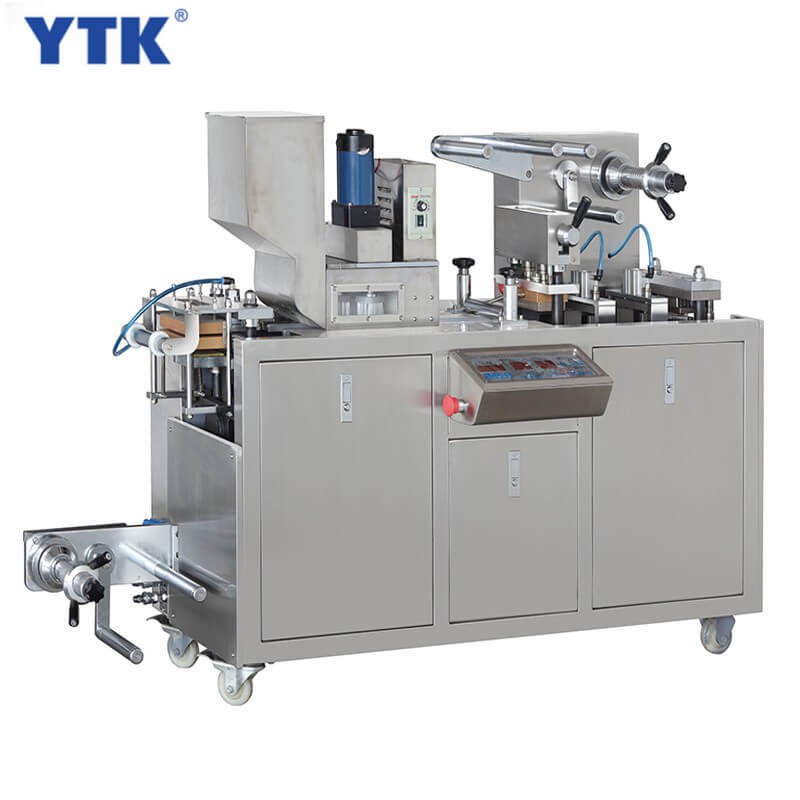

Capsule Pill Tablet Automatic DPP-80 ALU PVC Pharmaceutical Blister Packaging Machine

Model:YTK-DPP/B-80
Punch frequency:10-20times/min
Production capacity:2400plates/hour
Air pressure:0.4-0.6Mpa
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

EMAIL

Capsule Pill Tablet Automatic DPP-80 ALU PVC Pharmaceutical Blister Packaging Machine

Features:

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requiremen

3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

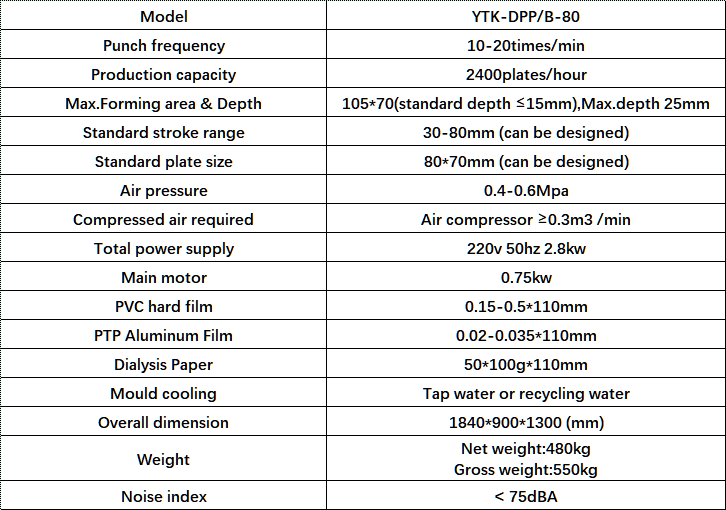

Parameter

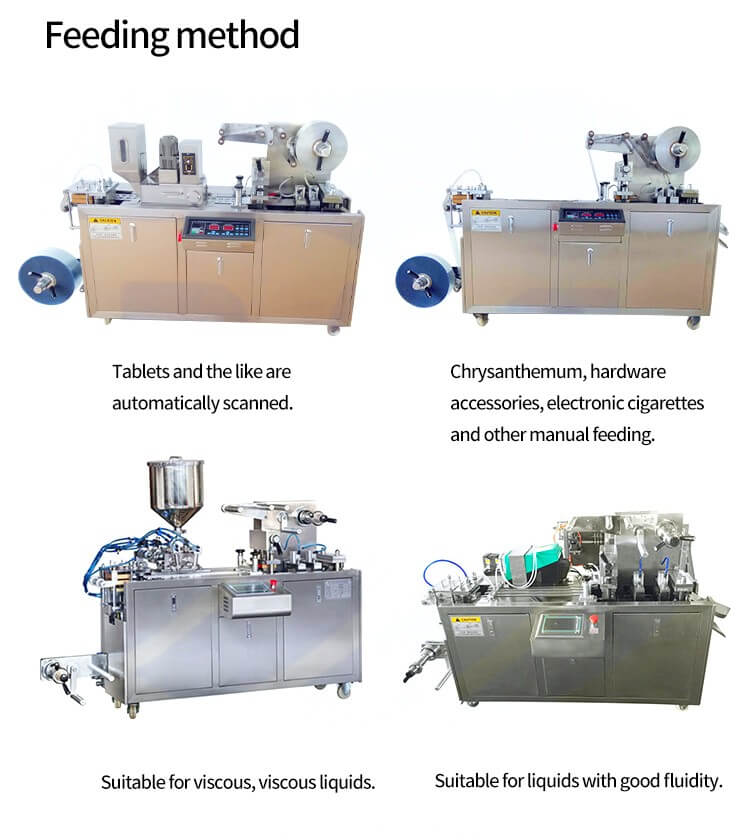

Application
