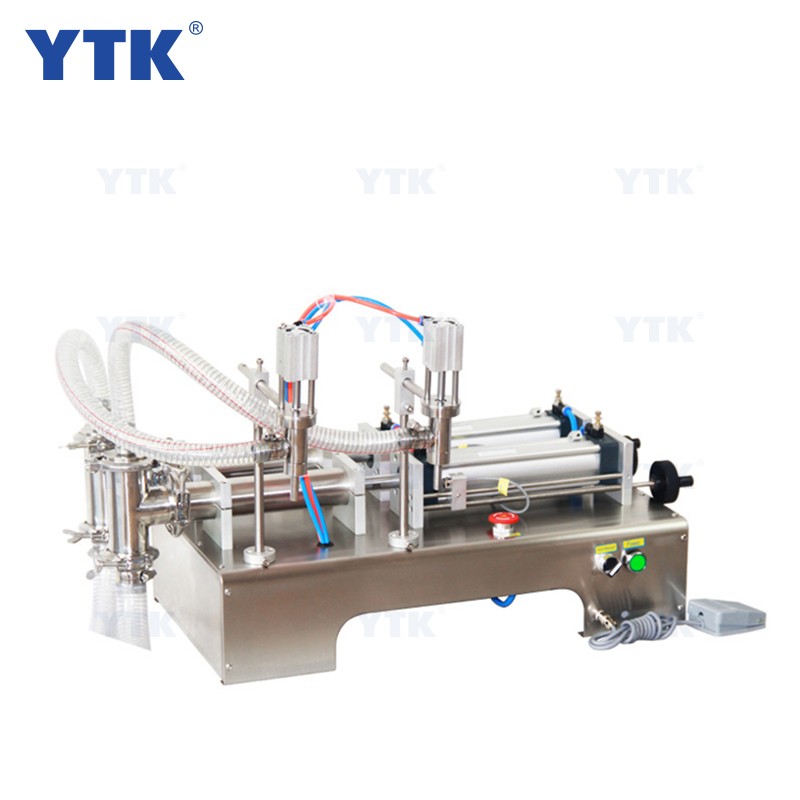

G2WY double head pneumatic liquid piston filling machine

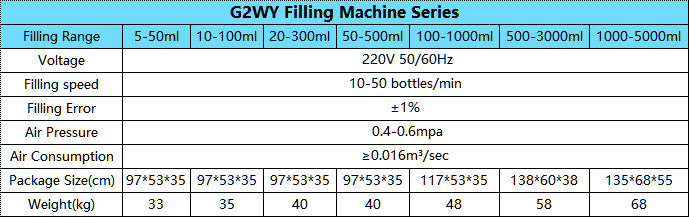

Model Option: G2WY-30, G2WY-100, G2WY-300, G2WY-500, G2WY-1000, G2WY-3000, G2WY-5000
Filling range: 3-30ml, 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
Filling speed: 5-15bottles/nozzle·min
Accuracy: ±1%
Air pressure: 0.4-0.6MPa


G2WY double head pneumatic liquid piston filling machine

Product Description

This series of filling machines is a product of the company's innovation and innovation in combination with advanced technology at home and abroad. Its structure is more simple, reasonable, high precision and easier to operate. The design is reasonable, the machine is compact, and the operation is convenient. It has adjustable filling handle, filling speed can be adjusted arbitrarily, and the filling accuracy is high. The filling valve head adopts anti dripping, anti drawing and lifting filling device.



· All Parts in Contact with Product are Food Grade (SS 304/316)

· Rugged Rotary Valve System Design

· Silica gel O-ring System(can bear 200 Celsius degree)

· Piston Feed Speed Adjustment

· Non-drip Option Included and Installed

· Easy to Clean and Maintain

· Sanitary Stainless Steel Quick Disconnect Fittings

· Quick Connect/Disconnect Pneumatic Fittings

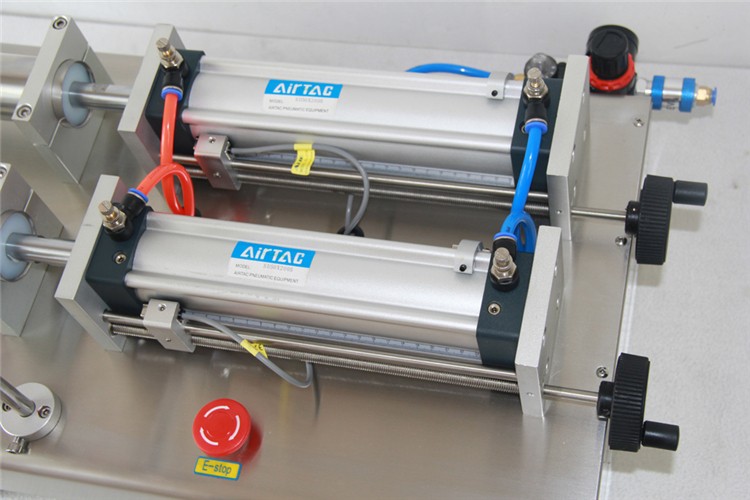

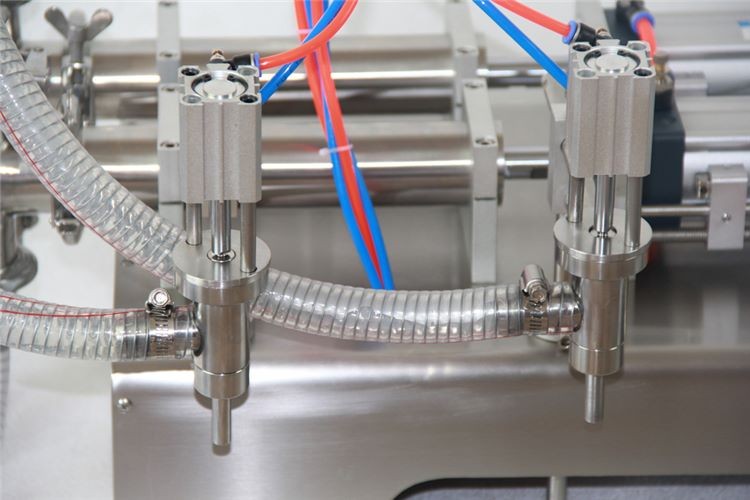

Detailed Images

YTK-G2WY detail01_副本.png
